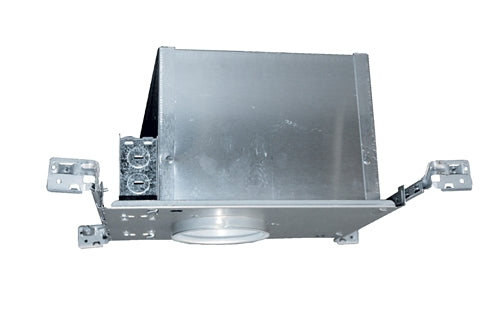

Juno Recessed Lighting IC1P (IC1P) 4" New Construction Line Voltage IC type Housing with Detachable Socket

Description

IC rated, energy efficient, Air-Loc® sealed double wall construction housing does not require separate Air-Loc gasket. Can be completely covered with insulation. Air-Loc housing with all trims stops infiltration and exfiltration of air, reducing heating and cooling costs. 4" IC housing optimized for PAR20 gimbal and higher wattage 120V MR16 lamps

Features & Benefits

• 4" Housing
• Medium base porcelain socket with nickel-plated copper screw shell
• Housing is vertically adjustable to accommodate up to a 1" ceiling thickness
• Aluminum housing is fully assembled for ease of installation
• Real Nail® 3 bar hangers: telescoping system with pre-installed removable nail for easy repositioning of housing in joist construction.
• Integral T-bar mounting feature for secure installation in suspended ceilings
• Patented breakaway bars for tight joist spacing
• Bar hangers may be re-positioned 90º
• Curved foot facilitates alignment with joist bottom
• Quick-Loc slot and oversized set screw lock fixture in position
• Pre-wired junction box with (6) 1/2" and (1) 3/4" knockouts with pryout slots, (4) non-metallic sheathed cable connectors, and ground wire
• Shadow-free, knife-edge trim design blends smoothly into the ceiling and allows architectural continuity with Aculux® trims
• UL Listed, C-UL/CSA certified for through-branch wiring, maximum (6) #12 AWG minimum 90° C branch circuit conductors (3 in, 3 out)
• Thermally protected against improper use of lamps
• Lamp wattage ratings and apertures based on trim selection
