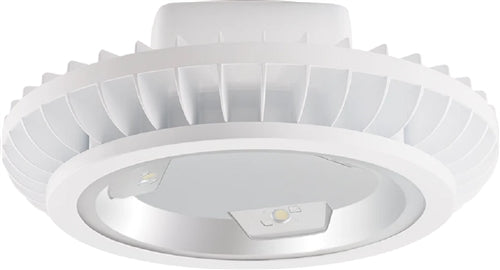

AB BAYLED78NW/D10 78W High Bay BAYLED, 4000K Color Temperature (Neutral), Standard Operation, White Finish

Suitable for wet locations

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculations

The Type II distribution is ideal for wide walkways, on ramps and entrance roadways, bike paths and other long and narrow lighting applications. This type is meant for lighting larger areas and usually is located near the roadside. This type of lighting is commonly found on smaller side streets or jogging paths.

EPA = 0.75

Suitable for use in up to 55°C (131°F)

The minimum starting temperature is -40°C (-40°F)

Superior thermal management with external "Air-Flow" fins

Heavy-duty 1/2" thread mounting arm with "O" ring seal & stainless steel screws

Specular vacuum-metallized polycarbonate

High-temperature silicone gaskets

Ingress protection rating of IP66 for dust and water

Formulated for high durability and long-lasting color

Mercury and UV free. RoHS-compliant components.

Multi-chip, high-output, long-life LEDs

LED color temperature is warrantied to shift no more than 200K in color temperature over a 5-year period

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

11.83% at 120V, 9.66% at 277V

99.1% at 120V, 93.5% at 277V

4kV

Equivalent to 4 lamp T8 fixtures

RAB values USA manufacturing! Upon request, RAB may be able to manufacture this product to be compliant with the Buy American Act (BAA). Please contact customer service to request a quote for the product to be made BAA compliant.

B2 U0 G2
