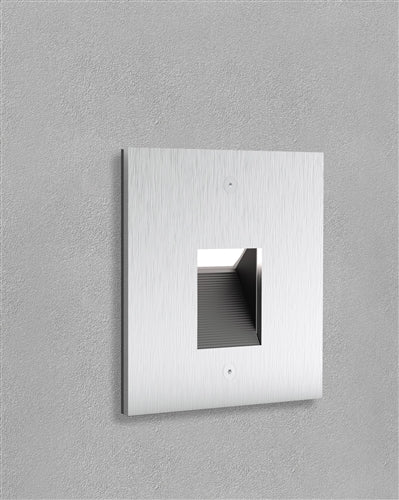

Acuity STEP11 SQU WL L LST1A 350MA WHT27K MVOLT SGB Winona Step LED Light, 2700K, Long Distribution, Black
Acuity STEP11 SQU WL L LST1A 350MA WHT27K MVOLT SGB Winona Step LED Light, 2700K, Long Distribution, Black
Regular price
Price:
$335.34
Regular price
Price:
Sale price
$335.34
Unit price
per
MODEL: Juno-STEP11-SQU-L-30158
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
Construcion

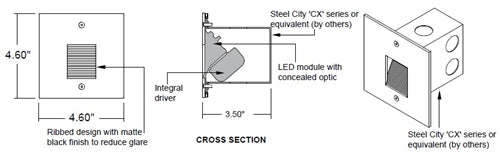

Die-cast housing with solid aluminum, brass, or stainless steel faceplate. Step11 is a surface mount step light that mounts over a Steel City 'CX' series or equivalent junction box (by others) with two visible fasteners.
Source
Light source is a single powerful LED available in five white color temperatures & six colored LED choices.
Optics
Concealed optic is available in three light distribution patterns. Short for narrow corridors, Medium for wide corridors, and Long for large area illumination.
Electrical
Integral electronic drivers are multi volt input 120-277V, & available in standard or 0-10V dimming.
Non-dimming units consume 2.5W (350mA). Dimming units consume 4W (350mA only).
Environment
ETL / cETL listed dry location or optional wet location.
Finish
Recessed surfaces have a ribbed design with matte black finish to reduce glare. Faceplates are available in five metal finishes with protective clear coat or one of seven polyester powder coat painted finishes. A primer only finish is also available for field painting.
Warranty
5-year limited warranty.
Die-cast housing with solid aluminum, brass, or stainless steel faceplate. Step11 is a surface mount step light that mounts over a Steel City 'CX' series or equivalent junction box (by others) with two visible fasteners.
Source
Light source is a single powerful LED available in five white color temperatures & six colored LED choices.
Optics
Concealed optic is available in three light distribution patterns. Short for narrow corridors, Medium for wide corridors, and Long for large area illumination.
Electrical
Integral electronic drivers are multi volt input 120-277V, & available in standard or 0-10V dimming.
Non-dimming units consume 2.5W (350mA). Dimming units consume 4W (350mA only).
Environment
ETL / cETL listed dry location or optional wet location.
Finish
Recessed surfaces have a ribbed design with matte black finish to reduce glare. Faceplates are available in five metal finishes with protective clear coat or one of seven polyester powder coat painted finishes. A primer only finish is also available for field painting.
Warranty
5-year limited warranty.
