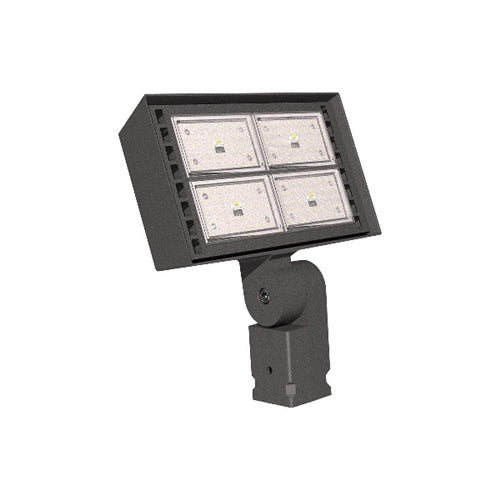

Beacon RFL4-176L-120-3K7-W-UNV-K-DB-PC Ratio LED Floodlight Medium Size, 76 LEDs, 15000 Lumens, 3000K, 70 CRI, Medium Flood Distribution, 120-277V, Knuckle Mount, Dark Bronze Textured Finish, Button Photocell

Price: $648.86

MODEL: Beacon-RFL4-145

Usually Ships in 3-5 business days. Urgent Project? Contact Us

Ordering a large quantity?Request a quote

description

PRODUCT SPECIFICATIONS
CONSTRUCTION

Corrosion resistant, rugged die-cast aluminum housing with powder coatpaint finish
High impact UV stabilized acrylic outer lens protects LEDs and allows for cleaning and debris removal
Internal venting fins create optimal heat dissipation and allow all water to drain from the face of the luminaire
Visor and louver options
Easy maintenance access to electrical components with removal of four screws from back of fixture housing
Lens hardware is internal to the fixture allowing for uniform pressure on the gasket for an optimal water tight seal

OPTICS

176 or 360 midpower LEDs
Stock Versions: 4000K and 5000K CCT
Variety of NEMA distributions: - N (3x3), M (4x4), and W (6x6). Stock version Wide (6x6) only
Entire optical aperture illuminates to create a larger luminous surface area resulting in a low glare appearance without sacrificing optical performance

CONTROLS

Photo control, occupancy sensor and wireless available for complete on/off dimming control
7-pin ANSI C136.41–2013 photocontrol receptacle option available for twist lock photocontrols or wireless control modules (control accessories sold separately)
0–10V dimming leads available for use with control devices (provided by others), must specify lead length
0-10V dimming driver standard, continuous dimming option to have leads pulled out for easy connection

INSTALLATION

Interchangeable knuckle and trunnion mounting options
Knuckle arm fitter option available for 2-3/8" OD tenon. 180 degrees of adjustability (with no options). 4 degree adjustable increments
Trunnion option available for surface and crossarm mounting using (1) 3/4" or (2) 1/2" size through bolts

ELECTRICAL

120–480V operation, 50/60Hz
Driver IP66 and RoHS compliant driver
Ambient operating temperature -40°C to 40°C. (265W configuration rated for 25°C)
7-pin module can limit backwards rotation of the luminaire
Drivers have 90% power factor and less than 20% THD
LED drivers have output power over-voltage, over-current protection and short circuit protection with auto recovery
10kA surge protector optional

CERTIFICATIONS

Fixture is IP66 rated
Listed to UL1598 for use in wet locations
DLC (DesignLights Consortium Qualified), with some Premium Qualified configurations. Please refer to the DLC website for specific product qualifications at www.designlights.org
This product meets federal procurement law requirements under the Buy American Act (FAR 52.225-9) and Trade Agreements Act (FAR 52.225-11). See Buy America(n) Solutions (link to https://www.currentlighting.com/ resources/america-solutions)
