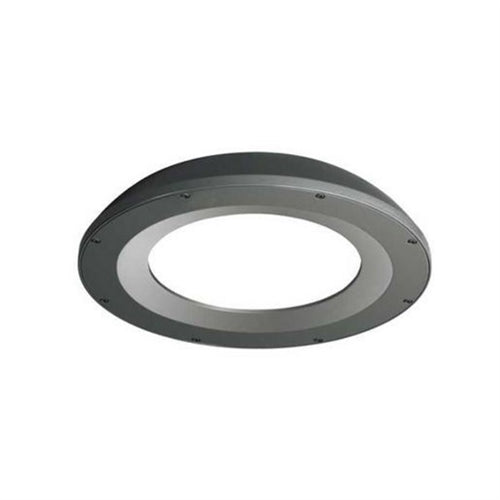

• Beacon SRT1-55-3K8-5QW-UNV-GTT 55W Edge-Lit Parking Garage LED Light Size 1, 6500 Lumens, 3000K, 80 CRI, Type 5 Square Wide Distribution, 120-277V, Graphite Matte Textured
  • Beacon SRT1-55-3K8-5QW-UNV-GTT 55W Edge-Lit Parking Garage LED Light Size 1, 6500 Lumens, 3000K, 80 CRI, Type 5 Square Wide Distribution, 120-277V, Graphite Matte Textured
1 2

Beacon SRT1-55-3K8-5QW-UNV-GTT 55W Edge-Lit Parking Garage LED Light Size 1, 6500 Lumens, 3000K, 80 CRI, Type 5 Square Wide Distribution, 120-277V, Graphite Matte Textured

Beacon SRT1-55-3K8-5QW-UNV-GTT 55W Edge-Lit Parking Garage LED Light Size 1, 6500 Lumens, 3000K, 80 CRI, Type 5 Square Wide Distribution, 120-277V, Graphite Matte Textured

Price: $412.01
Price: $412.01

MODEL: Beacon-SRT1-11

Usually Ships in 4-6 business days. Urgent Project? Contact Us
Add To Wishlist
Request a Quote
Ordering a large quantity?Request a quote
Free shipping for order over $98
Free shipping for order over $98
View full details

description

PRODUCT FAMILY SPECIFICATIONS
HOUSING
  • Die-cast aluminum housing ensures long electrical component life and luminaire performance
  • Corrosion resistant powder coat finish both protects and provides architectural appearance
  • One piece molded silicone gasket ensures weather proof seal
  • Thermally isolated driver mounted to dedicated bracket reduces operating temperatures and increases driver life and reliability
OPTICS
  • Edge-lit acrylic light guide provides blended non-pixelated light for unprecedented visual comfort
  • Choice of multiple light outputs with lumen range of 2000–6000
  • Two distribution types: Type 5 Square Wide, Type 5 Concentrated
  • Wide variety of CCT’s and CRI’s offered: 3000K (70CRI), 3000K (80CRI), 3500K (80CRI), 4000K (70CRI), 4000K (80CRI) or 5000K (70 CRI) CCT
ELECTRICAL
  • 120V–277V 50/60Hz available
  • 0–10V dimming drivers are RoHS compliant
  • Dimming Drivers are standard and dimming leads are extended out of the luminaire unless control options require connection to the dimming leads. Must specify if wiring leads are to be greater than the 24” standard
INSTALLATION
  • Standard quick mount plate over standard 4" junction box or octagonal junction box and allows for simplified fixture installation
  • Standard luminaire accepts a rigid or 3/4" NPT stem for pendant mounting via wet location j-box (by others)
  • Optional bird deterrent shroud available for field installation
OPTIONS/CONTROLS
  • Standalone occupancy sensor available for on/off or dimming operation
  • Uplight option provides approximately 800 lumens and consumes only 8 additional watts
  • Vandal resistant wire guard available as an option for factory installation or as an accessory for field installation
  • Please consult brand or sales representative when combining control and electrical options as some combinations may not operate as anticipated depending on your application
CERTIFICATIONS
  • Listed to UL1598 for use in wet location, listed for -40oC to 40oC applications
  • IDA approved with zero uplight for 3000K and warmer CCTs
  • DLC (DesignLights Consortium) Qualified. Please refer to the DLC website for specific product qualifications at www.designlights.org
  • This product qualifies as a "designated country construction material" per FAR 52.225-11 Buy American-Construction Materials under Trade Agreements effective 04/23/2020.
  • IP65
WARRANTY
  • 5 year warranty
