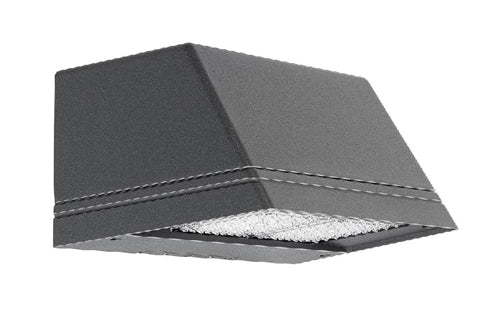

Beacon TRP2-36L-25-4K7-3-UNV-DBT Trapezoid Wall Mount LED Light, 4200 Lumens, 4000K, 70 CRI, Type 3 Distribution, 120-277V, Dark Bronze Matte Textured

Price: $726.00

MODEL: Beacon-TRP2-150

Usually Ships in 3-5 business days. Urgent Project? Contact Us

Ordering a large quantity?Request a quote

description

PRODUCT SPECIFICATIONS
CONSTRUCTION

OPTICS

INSTALLATION

Quick-mount adapter with gasket seal provides easy installation to wall or to recessed junction box (4" square junction box). Fixture attaches by two Allen-head hidden fasteners for tamper resistance
Back box accessory available for surface conduit application

ELECTRICAL

Optional Dual Drivers & Dual Power Feed
120-277, 347 and 480 voltage, 50/60Hz
Power factor > 90%
THD (Total Harmonic Distortion) <20%
Ambient operating temperature -40°C to 40°C
Optional: 20kA surge protection device (series); Automatically takes fixture off-line when device is consumed
Integral Battery Backup provides emergency lighting with 13W of power for the required 90 minutes for path of egress
Independent dedicated driver and LED array for battery/emergency mode operation

CONTROLS

Drivers are 0-10V dimming standard
Universal button photocontrol for dusk to dawn energy savings
Photocell and occupancy sensor options available for complete on/off and dimming control
Dual Driver option provides 2 drivers within luminaire but only one set of leads exiting the luminaire, where Dual Power Feed provides two drivers which can be wired independently as two sets of leads are extended from the luminaire. Both options can not be included in one same fixture.

CERTIFICATIONS

IP65 rated housing
Zero uplight (U0), dark sky, neighbor friendly
Drivers IP66 and RoHS compliant
This product meets federal procurement law requirements under the Buy American Act (FAR 52.225-9) and Trade Agreements Act (FAR 52.225-11). See Buy American Solutions.

WARRANTY
