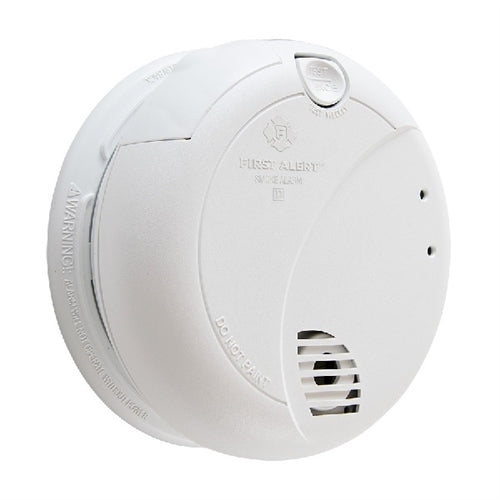

BRK Electronics First Alert 7010LBL 120V AC/DC Hardwired with Lithium Battery Back Up and Locked Battery Drawer Photoelectric Smoke Alarm
BRK Electronics First Alert 7010LBL 120V AC/DC Hardwired with Lithium Battery Back Up and Locked Battery Drawer Photoelectric Smoke Alarm
Regular price
Price:
$35.88
Regular price
Price:
Sale price
$35.88
Unit price
per
Ordering a large quantity?Request a quote
description
Hardwired Photoelectric Smoke alarm with 10-Year Sealed Lithium Battery Backup.
- Photoelectric Smoke Sensing Technology
- 10-Year Battery Backup
- Latching Alarm Indicator--Easily identifies initiating alarm even after condition is silenced
- Single Test/Silence Button
- Perfect Mount--Easy mounting bracket to keep alarm secure over wide rotation for perfect alignment
- 10-Year Limited Warranty
| Model # | 7010LBL |
| Weight | 8.4 oz |
| Dimension | 5.0"dia. x 2.1"H |
| Operating Voltage | 120V AC 60Hz
w/ 9V Lithium Battery Backup |
| Temperature Range | 40°F (4°C) to 100°F (38°C) |
| Humidity Range | 10% to 90% relative humidity (RH) |
| Audio Alarm | 85dB at 10 feet |
| Test/Silence | Electronically simulates smoke
or CO condition, causing the unit to alarm. Press and hold test/silence button. |
| Alarm Reset | Automatic when smoke or CO clears |
| Interconnections | Up to 18 units of First Alert or
BRK Smoke, CO and Heat Alarms. Maximum of 12 smoke alarms. See user's manual for details |
| Smoke Sensor | Photoelectric |
| Strobe Light | 177 candela Xenon strobe |
| Flash Rate | 1 Hz. |
| Smoke Alarm | Constant approx. 1 fl ash per second. |
| CO Alarm | Intermittent approx. 1 fl ash per second for four |
| flashes, then 5 seconds off. Pattern is repeated. | |
| Indicator Lights/Sounds | AC Power:
Constant Green LED DC Power: Flashing Red LED once per minute (battery backup) Local Alarm: Red LED flashes rapidly Latching Alarm: Red LED flashes once per second for 3 seconds after local alarm. Pattern repeats approximately every 45 secs. Battery End of Life: Single chirp once per minute Remote Alarm: Audio alarm and Red LED out |
| Listing | Conforms to UL STD 217 |
downloads
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
