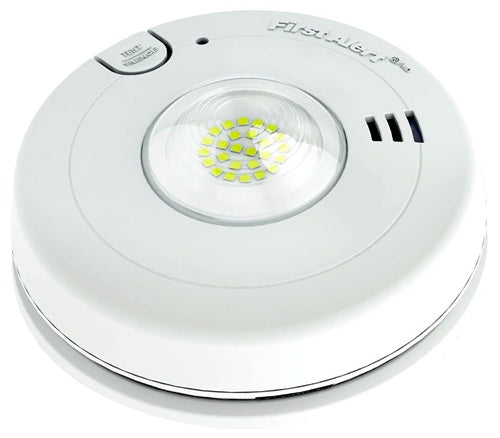

BRK Electronics First Alert 7020BSL 120V AC/DC Hardwired Photoelectric Smoke Alarm with Integrated Strobe Light and 10-Year Sealed Battery Back Up (Upgraded to SM110LED-AC)
BRK Electronics First Alert 7020BSL 120V AC/DC Hardwired Photoelectric Smoke Alarm with Integrated Strobe Light and 10-Year Sealed Battery Back Up (Upgraded to SM110LED-AC)
Regular price
Price:
$95.38
Regular price
Price:
Sale price
$95.38
Unit price
per
Ordering a large quantity?Request a quote
description
Hardwired smoke alarm with 10-Year battery back-up and integrated 177 candela LED strobe meets codes where a photoelectric smoke sensor and an ADA approved strobe is required.
- AC Powered with 10-Year Sealed Battery Backup
- Integrated Smoke Alarm & Strobe Light – saves time & money! Requires only one junction box
- Smart Strobe – Separate flash patterns to distinguish between smoke and carbon monoxide
- 177 Candela Synchronized LED – Powerful LED strobe light provides effective visual warning intended to waken hearing impaired residents. When multiple units installed, strobes flash in unison
- 1Hz Flash Rate – Meets ADA, ANSI 117.1, NFPA 72 and UL STD 1971
- Optipath 360 TechnologyTM – Provides 360 degrees of direct access to the smoke sensing chamber
- Slim design
- 10-Year Limited Warranty
| Model # | 7020BSL |
| Weight | 10.6 oz |
| Dimension | 5.2"dia. x 2.3"H |
| Operating Voltage | 120V AC 60Hz with 3V Sealed Lithium Metal Battery Backup for alarm. |
| Operating Current | 0.05/0.60 amps (standby/alarm) |
| Temperature Range | 40°F (4°C) to 100°F (38°C) |
| Humidity Range | 10% to 95% relative humidity (RH) |
| Audio Alarm | 85dB at 10 feet |
| Test/Silence | Electronically simulates smoke condition, causing the unit to alarm Press and hold test/silence button |
| Alarm Reset | Automatic when smoke clears |
| Interconnections | Up to 18 units of First Alert or BRK Smoke, CO and Heat Alarms. Maximum number of 12 smoke alarms |
| Smoke Sensor | Photoelectric |
| Strobe Light | 177 candela LED strobe |
| Indicator Lights/Sounds |
|
| Listing | Listed to UL217 & UL1971 Standards |
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
