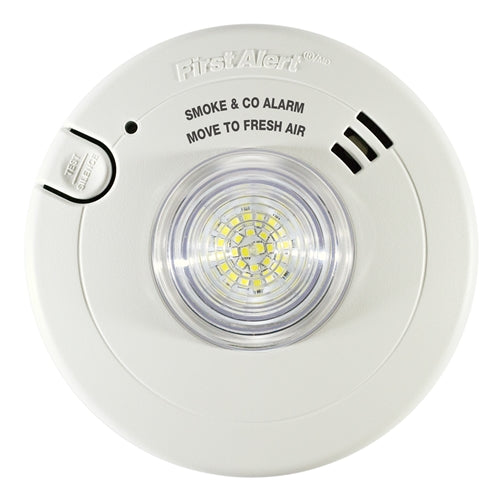

BRK Electronics First Alert 7030BSL 120V AC/DC Hardwired Smoke & Carbon Monoxide Alarm with LED Strobe and 10-Year Sealed Lithium Battery Backup (Upgraded to SMCO110LED-AC)
BRK Electronics First Alert 7030BSL 120V AC/DC Hardwired Smoke & Carbon Monoxide Alarm with LED Strobe and 10-Year Sealed Lithium Battery Backup (Upgraded to SMCO110LED-AC)
Regular price
Price:
$129.88
Regular price
Price:
Sale price
$129.88
Unit price
per
Ordering a large quantity?Request a quote
description
Hardwired smoke and carbon monoxide alarm with 10-Year battery back-up and integrated 177 candela LED strobe meets codes where a photoelectric smoke sensor and an ADA approved strobe is required.
- AC Powered with 10-Year Battery Backup
- Integrated Combination Smoke & Carbon Monoxide Alarm & Strobe Light-saves installation times and costs!
- Smart Strobe- Separate flash patterns to distinguish between smoke and carbon monoxide
- 177 Candela Synchronized LED-Powerful LED strobe light provides effective visual warning intended to waken hearing impaired residents. When multiple units installed, strobes flash in unison
- 1 HZ Flash Rate
- Optipath 360 Technology - Provides 360 degrees of direct access to the smoke sensing chamber
- Slim design
- 10-Year Limited Warranty
| Model# | 7030BSL |
| Weight | 10.6 oz |
| Dimension | 5.2"dia. x 2.3"H |
| Operating Voltage | 120V AC 60Hz with 3V Sealed
Lithium Battery Backup for alarm. |
| Operating Current | Alarm 0.8 A |
| Temperature Range | 40°F (4°C) to 100°F (38°C) |
| Humidity Range | 10% to 95% relative humidity (RH) |
| Audio Alarm | 85dB at 10 feet |
| Test/Silence | Electronically simulates smoke
condition, causing the unit to alarm. Press and hold test/silence button. |
| Alarm Reset | Automatic when smoke clears |
| Interconnections | Up to 18 units of First Alert or
BRK Smoke, CO and Heat Alarms. Maximum number of 12 smoke alarms. |
| Smoke Sensor | Photoelectric |
| CO Sensor | Electrochemical |
| Strobe Light | 177 candela LED strobe |
| Indicator Lights/Sounds | AC Power: Constant Green
LED DC Power: Green LED flash, once per minute Alarm Condition: Red LED flashes with audible alarm (horn) pattern and strobe (flash) pattern Horn Pattern: Smoke - Approx. 1 beep per second for 3 beeps, then 1 second off. CO - 4 rapid beeps, then 5 seconds off. Strobe Pattern: Smoke - Constant, approx. 1 flash per second. CO - Approx. 1 flash per second for 4 flashes, then 3 seconds off. Silence: Approx. 9 minutes Smoke initiating alarm, approx. 4.5 minutes CO initiating alarm, 8 hours End of Life Alarm Latch: Smoke - Horn off and Red LED flashing 2 seconds on, 2 seconds off. CO - Same as smoke but with 4 short red LED pulses after 2 seconds on. Latching End of Life / Low Battery Indicator: Green LED flashing 2 seconds on, 2 seconds off End of Life Signal / Low Battery Signal: 5 short chirps with 5 Green LED flashes once per minute |
| Listing | Conforms to UL STD 217, UL STD 2034 & UL STD 1971 |
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
