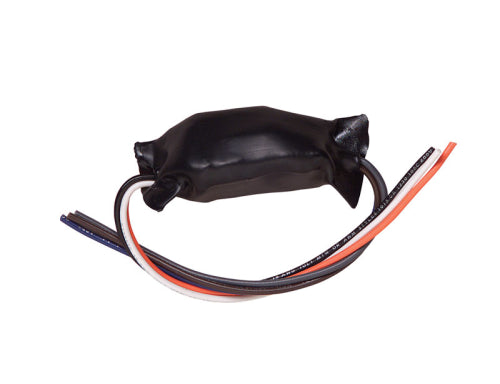

BRK Electronics First Alert RM4 120V AC Hardwired Smart Relay
BRK Electronics First Alert RM4 120V AC Hardwired Smart Relay
Regular price
Price:
$16.88
Regular price
Price:
Sale price
$16.88
Unit price
per
Ordering a large quantity?Request a quote
description
When connected to BRK or First Alert alarms, this relay is designed to activate an auxiliary device like a bell, siren, strobe light, exhaust fan, door closer, etc. when alarm is sounded.
- Works with Smart interconnect BRK CO alarms
- 120-volt AC-powered.
- Form-C contacts that switch between normally open and closed contacts
- Maximum contact rating:120-volt AC and 30-volt DC; Resistive-15 amps; Motor-1/3 horsepower
- 10-Years Limited Warranty
| Model # | RM4 |
| Weight | 2.2 oz |
| Dimension | 3.5" L x 1.5" H |
| Operating Voltage | 120V AC 60Hz |
| Operating Current | .02 amps (standby/alarm) |
| Temperature Range | 40°F (4°C) to 100°F (38°C) |
| Humidity Range | 10% to 90% relative humidity (RH) |
| Alarm Reset | Automatic when CO clears |
| Interconnections | Up to 18 units of First Alert or BRK Smoke, CO and Heat Alarms. Maximum of 12 smoke alarms. See user's manual for details. |
| Listing | Meets UL217, UL2034, UL539,ULC S-531, CSA6.19 and ULCS-530 for accessories. |
Download PDF manual (English)Share your knowledge of this product. Be the first to write a review »
