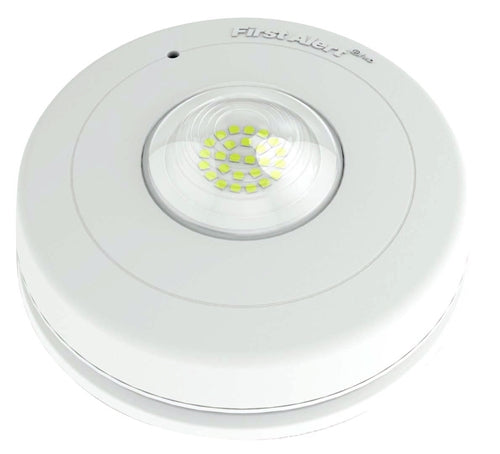

BRK Electronics First Alert SLED177 120V LED Strobe Light AC Hardwired Hearing Impaired
BRK Electronics First Alert SLED177 120V LED Strobe Light AC Hardwired Hearing Impaired
Regular price
Price:
$67.88
Regular price
Price:
Sale price
$67.88
Unit price
per
Ordering a large quantity?
Request a quote
This item is a strobe light only. You need to get smoke/CO/heat detectors to interconnect with it.
description
This AC hardwired signaling device is designed to meet the needs to the ADA where a 177 candela strobe light is required for deaf & hard of hearing residential and institutional applications.
- Smart Strobe – Separate flash patterns to distinguish between smoke and carbon monoxide
- 177 Candela LED – Powerful LED strobe light provides effective visual warning intended to waken hearing impaired residents
- Strobe Signal Synchronization – when multiple units installed, strobes flash in unison
- 1Hz Flash Rate – Meets ADA, ANSI 117.1, NFPA 72 and UL STD 1971
- Slim design
- 10-Year Limited Warranty
| Model# | SLED177 |
| Alarm Dimensions | 5.3"dia. x 2.4"H |
| Weight | 8.2 oz |
| Operating Voltage | 120V AC 60Hz |
| Operating Current | Alarm 0.8 A |
| Temperature Range | 40°F (4°C) to 100°F (38°C) |
| Humidity Range | 10% to 90% relative humidity (RH) |
| Visual Alarm | 177 candela LED strobe |
| Interconnections | Up to 18 units of First Alert or BRK Smoke, CO and Heat Alarms. Maximum number of 12 smoke alarms. See user’s manual for details. |
| Strobe Light | 177 candela LED strobe |
| Flash Rate | 1 Hz. |
| Flash Rate Smoke Alarm | Constant approx. 1 flash per second. |
| Flash Rate CO Alarm | Intermittent approx. 1 flash per second for four flashes, then 5 seconds off. Pattern is repeated. |
| Indicator Lights/Sounds AC Power | Constant Green LED |
| Indicator Lights/Sounds Remote Alarm (Smoke) | Steady flashing strobe and flashing Red LED |
| Indicator Lights/Sounds Remote Alarm (CO) | If this alarm interconnected to a BRK CO or Combo Alarm, then CO audio alarm, intermittent flashing strobe and Red LED OFF |
| End of Life | 5 Green LED flashes once per minute |
| Listing | Conforms to UL STD 1971 |
