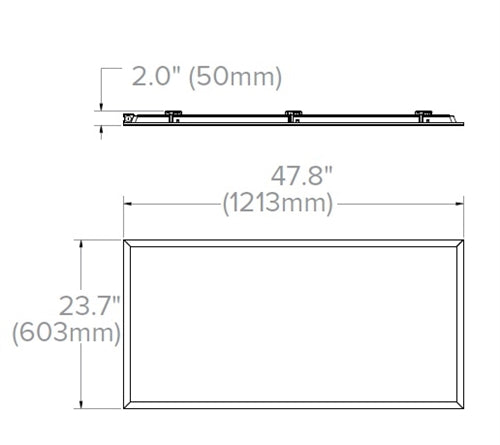

Home > Hubbell Lighting > Columbia Lighting CBT24-B-LSCS-EDD-EMBBKIT2'x4' Back-Lit LED Troffer, Generation B, Switchable 5500/4400/3300 Lumens, Switchable CCT 3500/4000/5000K, 0-10V Dim to Off, Emergency Battery Back Up Kit
Columbia Lighting CBT24-B-LSCS-EDD-EMBBKIT2'x4' Back-Lit LED Troffer, Generation B, Switchable 5500/4400/3300 Lumens, Switchable CCT 3500/4000/5000K, 0-10V Dim to Off, Emergency Battery Back Up Kit
Columbia Lighting CBT24-B-LSCS-EDD-EMBBKIT2'x4' Back-Lit LED Troffer, Generation B, Switchable 5500/4400/3300 Lumens, Switchable CCT 3500/4000/5000K, 0-10V Dim to Off, Emergency Battery Back Up Kit
Regular price
Price:
$297.17
Regular price
Price:
Sale price
$297.17
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
CONSTRUCTION
CONSTRUCTION
- Aluminum lens frame has a matte white finish
- Luminaire housing is die formed code-gauge steel
- Low profile design is ideal for shallow plenum applications
- Acrylic micro-optics over each LED provide edge to edge illumination without pixelation or bright spots
- Frosted acrylic textured lens provides smooth surface brightness
- Integral T-bar clips for secure mounting to 9/16" and 15/16" grid ceiling
- For surface mount applications use surface mount kit accessories
- For plaster or sheet rock installations, use flange kit accessories
- For cable mount applications use surface mount kit accessory and cable kit accessory
ELECTRICAL
PACKAGING- 60,000 hour LEDs at L90 for reduced maintenance
- Operates at 120–347V. 1V minimum lowend trim recommended when paired with a 0-10V dimmer
- 0-10V 1% Dim to Off driver is standard. See additional info on page 6
- Switchable luminaire default settings at highest lumen output and 3500K
- All CBT LSCS Generation B fixtures are priced as single fixtures and must be ordered as single fixtures. Standard packaging is a master carton containing four individually boxed fixtures. It should be noted in receiving documents that one master carton includes four individually boxed fixtures and should be received as four fixtures
- Ordering example; If a customer orders 21 fixtures they will receive (5) master cartons containing four fixtures and (1) individually boxed fixture.
CERTIFICATIONS
WARRANTY- All luminaires are built to UL 1598 standards and bear appropriate cULus labels
- Damp location label standard
- Adheres to LM79, LM80, and TM21 industry standards for photometrics and lifetime calculations
- DLC (DesignLights Consortium Qualified.) Please refer to the DLC website for specific product qualifications at www.designlights.org
- UL Sanitation Certified to NSF 2 Food Equipment standard for non-food zones
- Tested in accordance with ISO 14644-1; suitable for ISO Class 4 positive and negative pressure clean rooms
- 5 year warranty
