Home > Hubbell Lighting > Columbia Lighting MPS4-40LW-CW-EDU 4' MultiPurpose Linear LED Light, 80 CRI, 4000K, 4000 Lumens, Curve Frosted Acrylic Lens, Wide Distribution, 0-10V Dimming, 120-277V

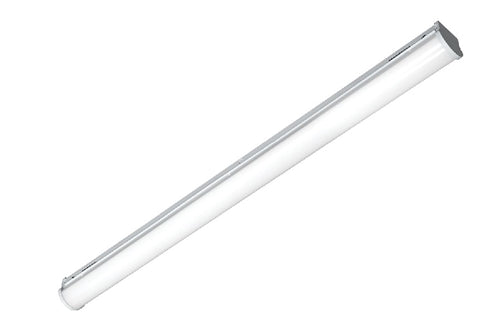

Columbia Lighting MPS4-40LW-CW-EDU 4' MultiPurpose Linear LED Light, 80 CRI, 4000K, 4000 Lumens, Curve Frosted Acrylic Lens, Wide Distribution, 0-10V Dimming, 120-277V
Columbia Lighting MPS4-40LW-CW-EDU 4' MultiPurpose Linear LED Light, 80 CRI, 4000K, 4000 Lumens, Curve Frosted Acrylic Lens, Wide Distribution, 0-10V Dimming, 120-277V
Regular price
Price:
$100.65
Regular price
Price:
Sale price
$100.65
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT SPECIFICATIONS
CONSTRUCTION
CONSTRUCTION
- Housing, wireway, and ends are formed from code-gauge steel
- Housing components act as heat sink for LED heat dissipation
- White painted parts are treated with a five stage phosphate bonding process and finished with high reflectance baked enamel
- Available with or without frosted acrylic lens
- Knockouts are provided for electrical access and mounting
- Long-life LEDs are rated for 60,000 hours at L80 lumen maintenance
- Driver options include fixed output for on/ off function, step dimming (high/low/off), or continuous 0-10V dimming
- Superior drivers and long-life LEDs provide quality illumination for prolonged service life
- Drivers < 10% THD at 120V, power factor > 0.95 Color Tuning Technology
- Optional SpectraSync offers two modes of Tunable White solutions and integrates seamlessly into a variety of control systems
- NX Distributed Intelligence provides options for standalone and networked integrated sensor with wired or wireless connectivity for NX system deployments
- SpectraSAFE is a scalable, cloud-enabled and lighting-based wireless video security solution for interior commercial and industrial applications
- IC label is standard for recessed products
- All luminaires are built to UL 1598 and 2108 standards, and bear appropriate cCSAus labels
- Damp Location label standard
- CSA certified to UL 924 standards with battery pack or DTS (Dimming Bypass Module) options
- Adheres to LM79, LM80, and TM21 industry standards
- The DTS, Dimming Bypass Module, is for emergency circuit control loads including sensors and wireless systems CSA certified to UL 924. See page 10 for wiring diagram.
- This product qualifies as a "designated country construction material" per FAR 52.225-11 Buy American-Construction Materials under Trade Agreements effective 06/01/2020.
- 5 year warranty
