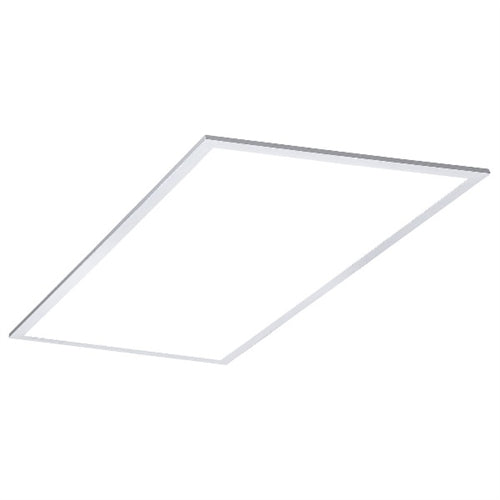

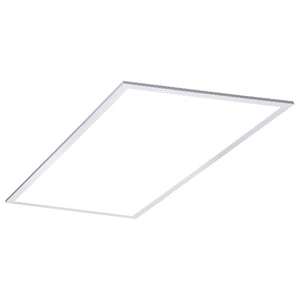

Columbia Lighting CBT24-75CS-ELL10 2'x4' Back-Lit Troffer, 7500 lumens, 3500/4000/5000K Switchable CCT, Emergency Battery Pack
Columbia Lighting CBT24-75CS-ELL10 2'x4' Back-Lit Troffer, 7500 lumens, 3500/4000/5000K Switchable CCT, Emergency Battery Pack
Regular price
Price:
$328.00
Regular price
Price:
Sale price
$328.00
Unit price
per
MODEL: CL-CBT24-75CS-ELL10
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
CONSTRUCTION
CONSTRUCTION
- Aluminum lens frame has a matte white finish
- Luminaire housing is die formed code-gauge steel
- Acrylic micro-optics over each LED provide edge to edge illumination without pixelation or bright spots
- Frosted/textured lens provides smooth surface brightness
- Integral T-bar clips for secure mounting to grid ceiling
- For surface mount applications use surface mount kit accessories
- For plaster or sheet rock installations, use flange kit accessories
- 60,000 hour LEDs at L70 for reduced maintenance
- Operates at 120–277V. 1V minimum low-end trim recommended when paired with a 0-10V dimmer
- 0-10V dimmable driver, down to 10%
- Switchable Lumen and Switchable CCT technology allows for easy field-adjustable lighting output with switch located on back of panel
- Switchable Lumen fixtures ship at the highest lumen output, 3500K
- All luminaires are built to UL 1598 standards and bear appropriate cULus labels
- Damp location label standard
- Adheres to LM79, LM80, and TM21 industry standards for photometrics and lifetime calculations
- DLC (DesignLights Consortium) Qualified. Please refer to the DLC website for specific product qualifications at www.designlights.org
- 5 year warranty
