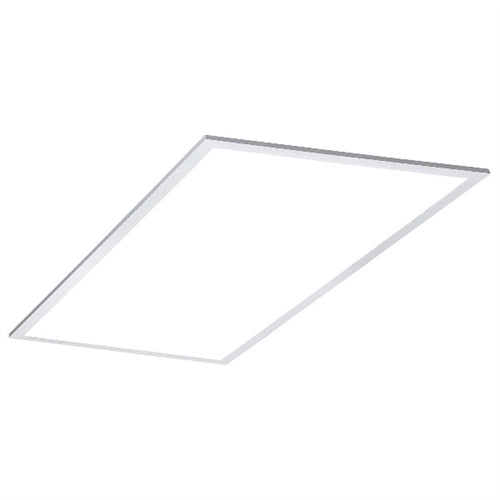

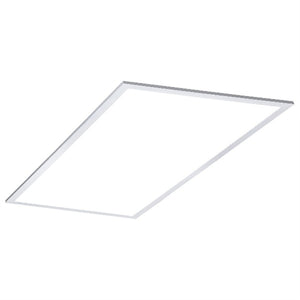

Columbia Lighting CBT24-LS35 2'x4' Back-Lit LED Troffer, 5500/4400/3300 Switchable Lumens, 3500K Color Temperature
Columbia Lighting CBT24-LS35 2'x4' Back-Lit LED Troffer, 5500/4400/3300 Switchable Lumens, 3500K Color Temperature
Regular price
Price:
$54.88
Regular price
Price:
Sale price
$54.88
Unit price
per
MODEL: CL-CBT24-LS35
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
CONSTRUCTION
CONSTRUCTION
- Aluminum lens frame has a matte white finish
- Luminaire housing is die formed code-gauge steel
- Acrylic micro-optics over each LED provide edge to edge illumination without pixelation or bright spots
- Frosted/textured lens provides smooth surface brightness
- Integral T-bar clips for secure mounting to grid ceiling
- For surface mount applications use surface mount kit accessories
- For plaster or sheet rock installations, use flange kit accessories
- 60,000 hour LEDs at L70 for reduced maintenance
- Operates at 120–277V
- 0--10V dimmable driver, down to 10%
- Switchable Lumen technology allows for easy field-adjustable lighting output with three level switch located on back of panel
- Switchable Lumen fixtures ship at the highest lumen output
CERTIFICATIONS
WARRANTY- All luminaires are built to UL 1598 standards and bear appropriate UL labels
- Damp location label standard
- Adheres to LM79, LM80, and TM21 industry standards for photometrics and lifetime calculations
- 5 year warranty
Download PDF Specification Share your knowledge of this product. Be the first to write a review »
