Columbia Lighting CRN2-2-LSCS-EDMV 150/200/240W Wet Location LED High Bay, Switchable Lumens, Switchable CCT, 0-10V Dimming, 120-347V
Columbia Lighting CRN2-2-LSCS-EDMV 150/200/240W Wet Location LED High Bay, Switchable Lumens, Switchable CCT, 0-10V Dimming, 120-347V
Regular price
Price:
$174.26
Regular price
Price:
Sale price
$174.26
Unit price
per
MODEL: CL-CRN2-170
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
CONSTRUCTION
CONSTRUCTION
- Die cast aluminum housing with polycarbonate lens provides durability for rugged environment
-
Thermally separated electronic and LED heat sink design allows for longevity in applicatio
- Pre-installed 6' wet location power and dimming cords for simplified installation
- Pendant mount from 1/2" NPT hook is standard
- Additional mounting accessories may be ordered separately

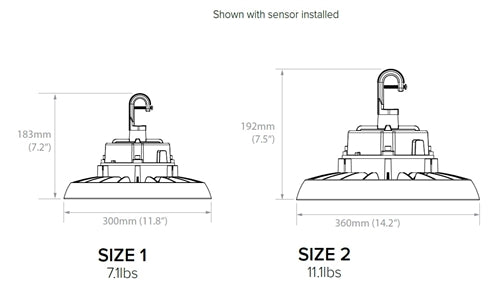

- Weight: Size 1: 7.1 lbs; Size 2: 11.1 lbs
ELECTRICAL
CONTROLS- Long-life +50,000hr LEDs at L70
- Total Input Wattage Size 1: 100W/ 120W/ 150W Size 2: 150W/ 200W/ 240W
- Universal voltage Standard (120–347V)
- Standard 6kV surge protection for demanding environments
- Standard 0-10V, 10% dimming
- White field installable passive infrared (PIR) occupancy sensor provides discrete integration into the fixture maximizing sensor coverage range
CERTIFICATIONS
WARRANTY- All luminaires are built to UL 1598 standards, and bear appropriate cULus labels for wet locations
- Ambient Operating Temperature range:
- Without Sensor: (Standard) -40°C to 50°C (-40°F to 122°F)
- With Sensor: -30°C to 50°C (-22°F to 122°F)
- IP65 rated
- IK07 impact rated
- NSF Splash Zone 2- food equipment standard for non-food zones rated
- NEMA 250 Type 4X rated
- 5 year warranty
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
