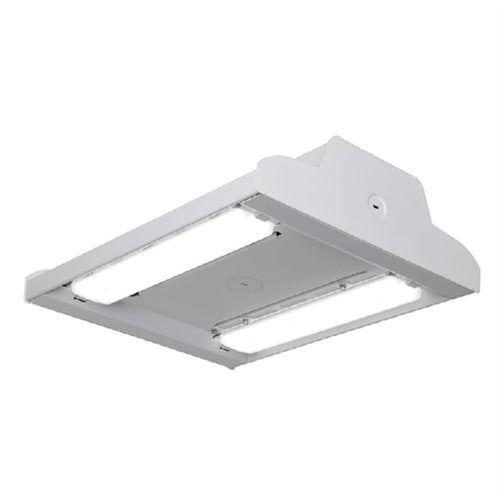

Columbia Lighting ECH1-840-L18-DW-ED-U-ST High Performance High Bay, 4000K, 80 CRI, 18000 Lumens, Diffuse Optics, 0-10V Dimming, 120-277V, Standard Mounting

Price: $345.84

MODEL: CL-ECH1-94

Usually Ships in 4-6 business days. Urgent Project? Contact Us

Ordering a large quantity?Request a quote

description

PRODUCT SPECIFICATIONS
CONSTRUCTION

Fixture housing is a combination of steel and aluminum for exceptional durability and heat dissipation
Fixture design provides easy access to electrical components by removal of bottom channel cover
Robust white powder coating prevents chipping and/or flaking while providing protection in more demanding environments
Access plate mounted on back of fixture providing easy access to make wiring connections
Knockouts on both ends of fixture for electrical connection options

OPTICS

Diffuse optic options, plus wide, narrow, and aisle light distributions to meet any application requirement
Field changeable lens for maintenance and flexibility

INSTALLATION

ELECTRICAL

Light engine utilizing metal clad boards with high efficacy (up to 201 LPW), long life LEDs protect the fixtures lumen maintenance
Driver options include 3kV standard surge protection in 120-277V input or 6kV standard surge protection in 347-480V input
Power Factor >0.9 and THD <20 converts power efficiently and effectively into light
Driver options for fixed light output or 0-10V dimming down to 10% is available to customize light levels

CONTROLS

Integration of sensors (NX and Other) accomplished though knockout in bottom middle of fixture which eliminates fixture potentially blocking sensor
High-end trim, occupancy and ambient light detection with dimming available
NX Lighting Controls provides options for standalone and networked integrated sensor with wired or wireless connectivity for NX system deployments.
NX Connect is a standalone wireless deployment for room based applications using wireless enabled and battery operated devices.
DLC 5.1 LLC: Integrated/embedded networked lighting controls, luminaire-level lighting control (LLLC)

CERTIFICATIONS

Emergency battery pack options are California Energy Commission (CEC) Title 20 compliant
All luminaires are built to UL1598 standard
Damp location labeling is standard
UL/cUL Listed
DLC (DesignLights Consortium) Qualified.
Product configurations not including battery packs or controls meet federal procurement law requirements under the Trade Agreements Act (FAR 52.225-11). See Buy America(n) Solutions
-BAA Option: This product meets federal procurement law requirements under the Buy American Act (FAR 52.225-9). See Buy America(n) Solutions

WARRANTY
