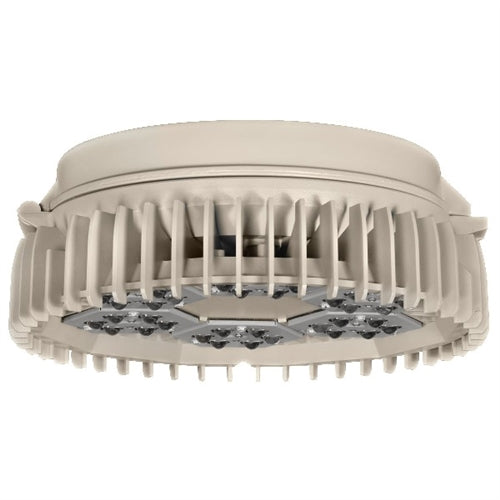

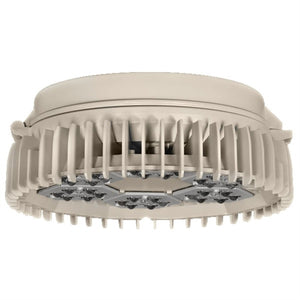

• Columbia Lighting KHL-24LU5K-5M-A2-TN Kemlux III Hazardouz Location Light, 57W 24 LEDs, 120-277V, 5000K, 68 CRI, Type V Square Optics, Pendant Mount, 3/4" Hub, Tan Finish
  • Columbia Lighting KHL-24LU5K-5M-A2-TN Kemlux III Hazardouz Location Light, 57W 24 LEDs, 120-277V, 5000K, 68 CRI, Type V Square Optics, Pendant Mount, 3/4" Hub, Tan Finish
1 2

Columbia Lighting KHL-24LU5K-5M-A2-TN Kemlux III Hazardouz Location Light, 57W 24 LEDs, 120-277V, 5000K, 68 CRI, Type V Square Optics, Pendant Mount, 3/4" Hub, Tan Finish

Columbia Lighting KHL-24LU5K-5M-A2-TN Kemlux III Hazardouz Location Light, 57W 24 LEDs, 120-277V, 5000K, 68 CRI, Type V Square Optics, Pendant Mount, 3/4" Hub, Tan Finish

Price: $1,418.00
Price: $1,418.00

MODEL: CL-KHL-24LU5K-5M-A2-TN

Usually Ships in 4-6 business days. Urgent Project? Contact Us
Add To Wishlist
Request a Quote
Ordering a large quantity?Request a quote
View full details

description

PRODUCT FAMILY SPECIFICATIONS
APPLICATIONS
  • Designed to efficiently light corrosive and Hazardous applications such as chemical, petrochemical, marine, power generation, pharmaceutical or food processing plants.
CONSTRUCTION
  • Vertically finned cast aluminum housing for maximum heat dissipation ensuring long component life and performance
  • Separate hinged optical and electrical compartments for optimum component operation and easy installation, maintenance.
  • One piece molded silicone gasket ensures weather proof seal around each individual LED; Stamped bezel provides mechanical compression to seal the optical assembly
  • Modular design provides 6 mounting options
  • Specialized thermal management allows up to 40°C ambient temperature ratings
  • Copper-free (<0.4%) aluminum housing and cover with tan Lektrocote powder polyester paint finish provides excellent corrosion resistance from most chemicals
OPTICS/ELECTRICAL SYSTEM
  • Custom engineered LED optics providing optimally controlled and evenly distributed light
  • Three distinct distributions: Type V square, Type V rectangle and Narrow
LED LIGHT ENGINE
  • High output LEDs delivering up to 105 lumens per watt
  • CCT: 5100K
  • 18, 24 and 36 LEDs on up to 6 light engines providing fail-safe redundancy
LED DRIVER
  • Transient voltage protection with standard 10KVA surge suppressor
  • Thermal compensation management
  • Wattage: 43-86
  • Minimum operating temperature of -40˚C to 40˚C
LISTINGS
  • Listed to UL844 for use in hazardous locations
  • CSA Listed to UL1598 Wet Location
  • Class I, Division 2, Groups A, B, C & D; T-code of T5
WARRANTY
  • 5 year warranty

downloads

Share your knowledge of this product. Be the first to write a review »

Browse for more products in the same category as this item:
