Home > Hubbell Lighting > Columbia Lighting LCAT14-LSCS 1'x4' LED Architectural Troffer, CCT Color Temperature & Lumen Switchable

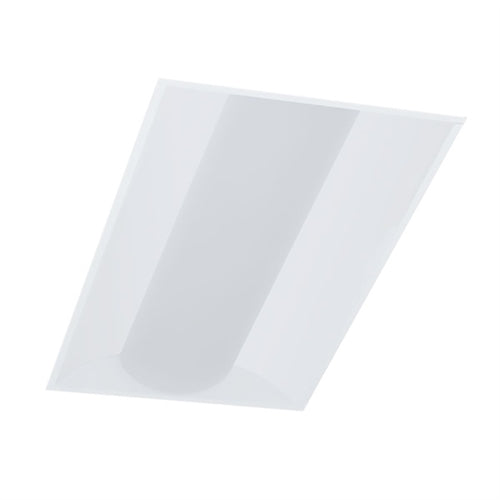

Columbia Lighting LCAT14-LSCS 1'x4' LED Architectural Troffer, CCT Color Temperature & Lumen Switchable
Columbia Lighting LCAT14-LSCS 1'x4' LED Architectural Troffer, CCT Color Temperature & Lumen Switchable
Regular price
Price:
$172.67
Regular price
Price:
Sale price
$172.67
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT SPECIFICATIONS
CONSTRUCTION
Removable lens for easy access to LED module and electrical components
INSTALLATION
CONSTRUCTION
- Luminaire housing, reflectors and end caps are die-formed code-gauge cold-rolled steel
- High transmission extruded acrylic enclosed lens features linear prisms with custom frost for high efficacy without pixelation
- All reflective surfaces are finished after fabrication with unique formula high reflectivity matte white paint for soft, uniform indirect illumination
Removable lens for easy access to LED module and electrical components
INSTALLATION
- An access plate is furnished with each luminaire for fast wiring access without the necessity to open the fixture or wireway
- Luminaire fits recessed exposed Grid ceilings (G); four integral NEC compliant T-bar clips are standard
- Can be placed in Slot Grid (SG) style ceiling with regress 3/8" above ceiling plane
- A Flange Kit (FK) accessory is available for recessed hard ceiling applications
- 54,000 hour LEDs at L70 for reduced maintenance
- 80 CRI standard
- 1V minimum low-end trim recommended when paired with a 0-10V dimmer
- IC label is standard for recessed products. Note that IC label is void if product is installed on site with a combination of both battery pack plus through wiring or for air return fixtures
- All luminaires are built to UL1598 and bear appropriate cCSAus labels
- CSA certified to UL 924 standards with battery pack option
- Damp Location label standard
- Adheres to LM79, LM80, and TM21 industry standards
- Product configurations not including battery packs or controls meet federal procurement law requirements under the Trade Agreements Act (FAR 52.225-11). See Buy America(n) Solutions
- DLC (DesignLights Consortium) Qualified. Please refer to the DLC website for specific product qualifications at www.designlights. org
- 5 year warranty
Download PDF Specification Share your knowledge of this product. Be the first to write a review »
