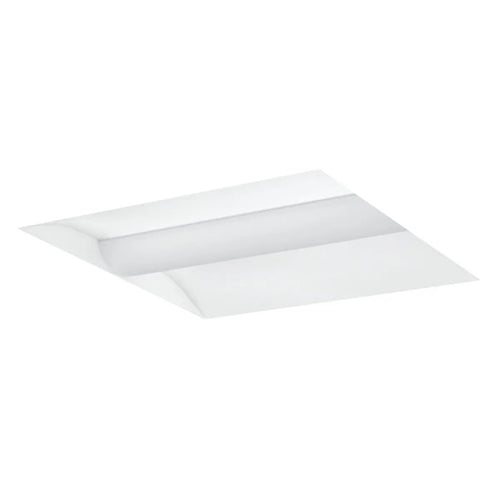

Columbia Lighting LCAT22-35MLG-EDU 30W 2'x2' LED Contemporary Architectural Troffer, 3500K, Medium Lumen, Grid Lay-in Ceiling, Static Air Function, 0-10V Dimming, 120-277V, with Dimming Bypass Module
Columbia Lighting LCAT22-35MLG-EDU 30W 2'x2' LED Contemporary Architectural Troffer, 3500K, Medium Lumen, Grid Lay-in Ceiling, Static Air Function, 0-10V Dimming, 120-277V, with Dimming Bypass Module
Regular price
Price:
$338.25
Regular price
Price:
Sale price
$338.25
Unit price
per
MODEL: CL-LCAT22-35MWG-EDU-DTS
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
CONSTRUCTION
CONSTRUCTION
- Luminaire housing, reflectors and end caps are die-formed code-gauge cold-rolled steel
- High transmission extruded acrylic enclosed lens features linear prisms with custom frost for high efficacy without pixelation
- All reflective surfaces are finished after fabrication with unique formula high reflectivity matte white paint for soft, uniform indirect illumination
- Removable lens for easy access to LED module and electrical components
- An access plate is furnished with each luminaire for fast wiring access without the necessity to open the fixture or wireway

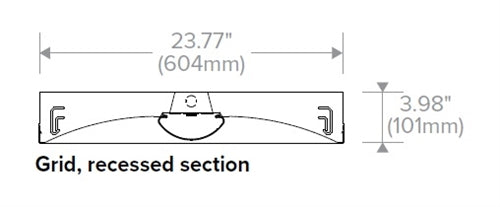

- Luminaire fits recessed exposed Grid ceilings (G); four integral NEC compliant T-bar clips are standard
- Can be placed in Slot Grid (SG) style ceiling with regress 3/8" above ceiling plane
- A Flange Kit (FK) accessory is available for recessed hard ceiling applications
- Surface Mount (SM) option allows placement below ceiling plane
- Cable Mount (CM) option allows suspension below ceiling plane
- 60,000 hour LEDs at L80 for reduced maintenance
- 83 CRI standard or optional 90 CRI for color sensitive applications
- Optional SpectraSync offers two modes of Tunable White solutions and integrates seamlessly into a variety of control systems
- NX Distributed Intelligence provides options for standalone and networked integrated sensor with wired or wireless connectivity for NX system deployments
- SpectraSAFE is a scalable, cloud-enabled and lighting-based wireless video security solution for interior commercial and industrial applications
- IC label is standard for recessed products.
- Note that IC label is void if product is installed on site with a combination of both battery pack plus through wiring or for air return fixtures
- All luminaires are built to UL1598 and 2108 standards, and bear appropriate cCSAus labels
- CSA certified to UL 924 standards with battery pack or DTS (Dimming Bypass Module) options
- Damp Location label standard
- Adheres to LM79, LM80, and TM21 industry standards
- DLC (DesignLights Consortium) Qualified, with some Premium Qualified configurations.
- NX is available in U.S., Canada and Mexico.
- The DTS, Dimming Bypass Module, is for emergency circuit control loads including sensors and wireless systems CSA certified to UL 924. See page 8 for wiring diagram.
- This product qualifies as a "designated country construction material" per FAR 52.225-11 Buy American-Construction Materials under Trade Agreements effective 04/03/2020. See Buy American Solutions
- 5 year warranty
