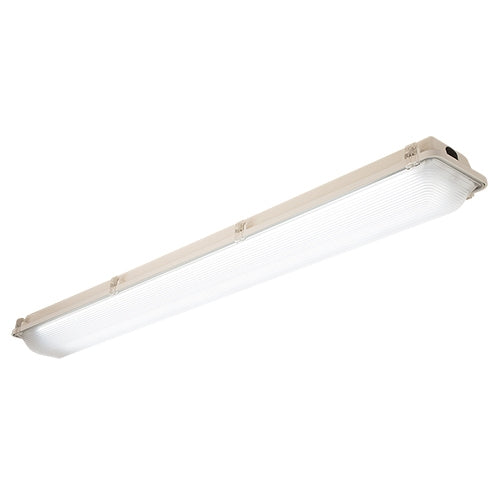

Columbia Lighting LXEM4-35ML-RFA-EU 47W 4' LED Enclosed and Gasketed Fiberglass Extreme Environment, 3500K, 4850-5350 Lumens, Ribbed Frosted Acrylic Shielding, Fixed Output, 120-277V, White Finish
Columbia Lighting LXEM4-35ML-RFA-EU 47W 4' LED Enclosed and Gasketed Fiberglass Extreme Environment, 3500K, 4850-5350 Lumens, Ribbed Frosted Acrylic Shielding, Fixed Output, 120-277V, White Finish
Regular price
Price:
$279.75
Regular price
Price:
Sale price
$279.75
Unit price
per
MODEL: CL-LXEM4-35ML-RFA-EU
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
CONSTRUCTION
CONSTRUCTION
- Housing is formed from UL 5VA fiberglass
- F1 weatherability rating, suitable for indoor or outdoor use with respect to exposure to UV light
- Pour-in-place non-porous gasketing assures seal
- LED affixed to removable heat sinked gear tray
- 14 Latches per 8', 8 per 4', 6 per 2'
- Latches are provided tamper resistance ready, tamper resistant screws by others
- Latches are standard polyacetal (POM), optional in stainless steel
- Access openings are provided for electrical connection
- White painted parts are treated with a fivestage phosphate bonding process and finished with high reflectance baked enamel
- Lineal ribbed frosted acrylic lens impact modified equivalent to 100% DR; modification adds flexibility to reduce impact breakage compared to standard acrylic formulations
- Optional ribbed polycarbonate lens or deep acrylic
- All lenses available in clear or frost
- Long life 60,000 hour LEDs at L80 for reduced maintenance
- Extra High Lumen packages (XL) rated L70 at 60,000 hours
- 80 CRI
- Driver options include fixed output for on/ off function, step dimming (high/low/off) or continuous 0-10V dimming
- QR code label affixed to housing for easy traceability
- All luminaires are built to UL 1598 and 2108 standards, and bear appropriate cCSAus labels
- CSA certified to UL 924 standards with battery pack or DTS (Dimming Bypass Module) options
- Wet Location label standard
- UL Sanitation certified to NSF standards
- Ingress protection IP65 and IP67 standard; IP66 on certain models
- DLC (DesignLights Consortium) Qualified, with some Premium Qualified configurations.
- The DTS, Dimming Bypass Module, is for emergency circuit control loads including sensors and wireless systems CSA certified to UL 924. See page 10 for wiring diagram.
- This product qualifies as a "designated country construction material" per FAR 52.225-11 Buy American-Construction Materials under Trade Agreements effective 06/01/2020. See Buy American Solutions
- 5 year warranty
