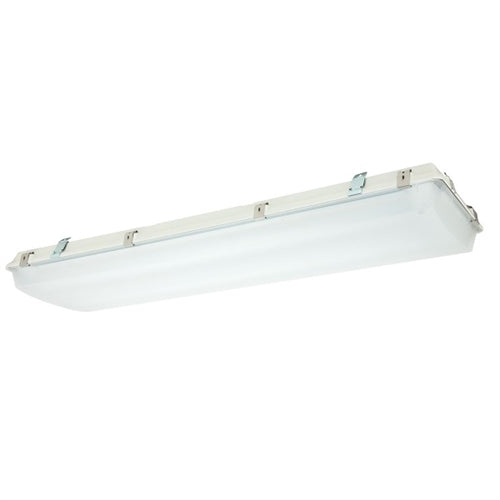

Columbia Lighting LXEW4-35H-FAW-EDU 4' Enclosed and Gasketed LED High Bay, 3500K, 21000 Lumens, Frost Impact Resistant Acrylic Lens, Wide Distribution, 0-10 Dimming, 120-277V

Price: $865.34

MODEL: CL-LXEW4-66

Usually Ships in 4-6 business days. Urgent Project? Contact Us

Ordering a large quantity?Request a quote

description

PRODUCT FAMILY SPECIFICATIONS
CONSTRUCTION

Housing is formed from UL 5VA fiberglass
Hinged driver tray for easy maintenance
Removable gear tray electrical access
Industrial fixture design allows for easy cleaning reducing dirt and water accumulation
12 captive polyacetal (POM) latches and 4 fixed installation points secures the fixture during transit and allows for fast installation
Housing has chemical resistant finish
Internal steel surfaces are painted with high gloss baked white enamel, applied over iron phosphate pre-treatment for maximum adhesion and rust resistance
Stainless steel parts have fine brushed mill finish
Lens firmly secured with tamper resistance ready latches

OPTICS

Specular reflector provides precise control and excellent efficiency for narrow distribution
Wide distribution uses high gloss white gear tray

INSTALLATION

ELECTRICAL

Long-life LEDs are rated for 60,000 hours at L80 lumen maintenance (see table for details)
QR code label affixed to housing for easy traceability
Drivers include minimum 6kV surge protection

CERTIFICATIONS

All luminaires are built to UL 1598 standards, and bear appropriate cCSAus labels
CSA certified to UL 924 standards with battery pack or DTS (Dimming Bypass Module) options
Wet Location label standard
UL Sanitation Certified to NSF 2 Food Equipment standard for non-food zones
Ingress protection IP65 and IP67 standard; IP66 on certain models
Emergency battery pack options are California Energy Commission (CEC) Title 20 compliant
The DTS, Dimming Bypass Module, is for emergency circuit control loads including sensors and wireless systems CSA certified to UL 924. See wiring diagram.
DLC (DesignLights Consortium) Qualified. Please refer to the DLC website for specific product qualifications at www.designlights.org

WARRANTY
