Home > Hubbell Lighting > Columbia Lighting NBT24-40L058G-FP-ED1U 2'x4' Back-Lit Troffer, 4000K, 5800 Lumens, 120-277V

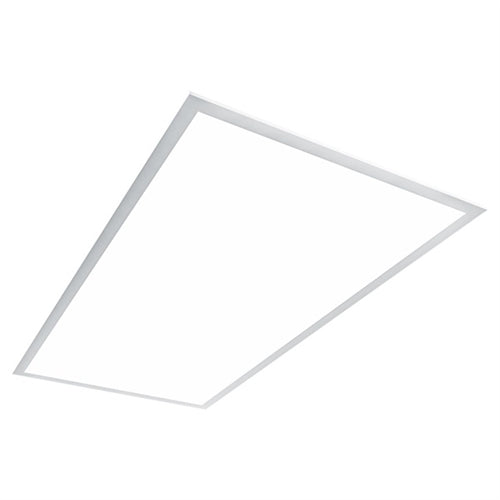

Columbia Lighting NBT24-40L058G-FP-ED1U 2'x4' Back-Lit Troffer, 4000K, 5800 Lumens, 120-277V
Columbia Lighting NBT24-40L058G-FP-ED1U 2'x4' Back-Lit Troffer, 4000K, 5800 Lumens, 120-277V
Regular price
Price:
$192.14
Regular price
Price:
Sale price
$192.14
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
CONSTRUCTION
CONSTRUCTION
- Aluminum lens frame has a matte white finish standard, matte black, antimicrobial white and silver finish options available
- Luminaire housing is die formed code-gauge steel
- Low profile design is ideal for shallow plenum applications
OPTICS
- Acrylic micro-optics over each LED provide edge to edge illumination without pixelation or bright spots
- Frosted textured lens provides smooth surface brightness
INSTALLATION
- An access plate is furnished with each luminaire for fast wiring
- Luminaire fits recessed exposed grid ceilings (G); four integral T-bar clips with holes for seismic wires are standard
- Available with Slot Grid (SG) frame for flush mounting in Slot Grid applications
- For surface mount applications use surface mount kit accessories
- For plaster or sheet rock installations, use flange kit accessories
ELECTRICAL
- 60,000 hour LEDs at L80 for reduced maintenance
- 80 CRI standard or optional 90 CRI for color sensitive applications
CONTROLS
- NX Lighting Controls provides options for standalone and networked integrated sensor with wired or wireless connectivity for NX system deployments
- NX Connect is a standalone wireless deployment for room based applications using wireless enabled and battery operated devices.
CERTIFICATIONS
- All luminaires are built to UL 1598 standards and bear appropriate cULus labels
- Damp location label standard, optional IP65 rating available
- Adheres to LM79, LM80, and TM21 industry standards for photometrics and lifetime calculations
- IC label is standard for recessed products
- CSA certified to UL 924 standards with battery pack or DTS (Dimming Bypass Module) options
- UL Sanitation Certified to NSF 2 Food Equipment standard for non-food zones
- Tested in accordance with ISO 14644-1; suitable for ISO Class 4-9 positive and negative pressure clean rooms
- Emergency battery options are California Energy Commission (CEC) Title 20 Compliant
- Suitable for ambient temperatures from -25°C to 25°C, 0°C to 25°C when integrated batteries are selected
- BAA Option: This product meets federal procurement law requirements under the Buy American Act (FAR 52.225-9). See Buy America(n) Solutions
- FCC Part 15b (FCC Communications Interference) Compliant
- CCEA approved option (CP) available
WARRANTY
- 5 year warranty
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
