Home > Hubbell Lighting > Columbia Lighting PEL2-40MM-FAW-EU 2' High Performance LED High Bay, 80 CRI, 4000K, 18000 Lumens, Frosted Acrylic Lens, Wide Distribution, No Uplight, Fixed Output, 120-277V

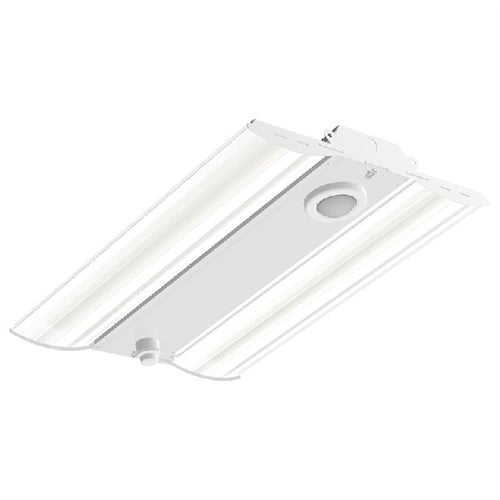

Columbia Lighting PEL2-40MM-FAW-EU 2' High Performance LED High Bay, 80 CRI, 4000K, 18000 Lumens, Frosted Acrylic Lens, Wide Distribution, No Uplight, Fixed Output, 120-277V
Columbia Lighting PEL2-40MM-FAW-EU 2' High Performance LED High Bay, 80 CRI, 4000K, 18000 Lumens, Frosted Acrylic Lens, Wide Distribution, No Uplight, Fixed Output, 120-277V
Regular price
Price:
$581.63
Regular price
Price:
Sale price
$581.63
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
CONSTRUCTION
CONSTRUCTION
- Code gauge steel construction for durability to withstand shipping and job site handling
- End caps constructed of 20ga steel for maximum rigidity
- All metal parts are post painted after fabrication with polyester powder coat paint with 90% reflectance
- Fixture design provides easy access to electrical components from below via removal of channel cover
- Access plate conveniently mounted on back of fixture for easy access to wiring
- Available with and without lens
- Wide and narrow distribution options available with acrylic and polycarbonate material
- Frosted material used to help diffuse LEDs for glare reduction
- Mounting options include suspension cables, surface mounting with use of tong brackets, single point stem (pendant) mount
- Refer to ambient table for max ambient rating associated with mounting options
ELECTRICAL
CONTROLS- Class 2 LED light engine with use of high efficacy (up to 180 LPW), long life LEDs
- Driver is high temperature rated (90C) with 6kV standard surge protection and available in 120-277V or 347-480V input, > 0.95 Power Factor
- 0-10V standard with dimming range of 100% to 5%
- NX Lighting Controls provides options for standalone and networked integrated sensor with wired or wireless connectivity for NX system deployments
- NX is available in U.S., Canada and Mexico.
- For other locations consult factory
- All luminaires are built to UL1598 standard and bear appropriate CSA labels
- Damp location labeling is standard
- CSA certified to UL 924 standards with battery pack or DTS (Dimming Bypass Module) options
- Adheres to LM79, LM80 and TM21 industry standards. DLC (DesignLights Consortium) Qualified, with some Premium Qualified configurations. Please refer to the DLC website for specific product qualifications at www.designlights.org
- The DTS, Dimming Bypass Module, is for emergency circuit control loads including sensors and wireless systems CSA certified to UL 924. See page 9 for wiring diagram.
- This product qualifies as a "designated country construction material” per FAR 52.225-11 Buy American-Construction Materials under Trade Agreements effective 06/01/2020.
- 5 year warranty
