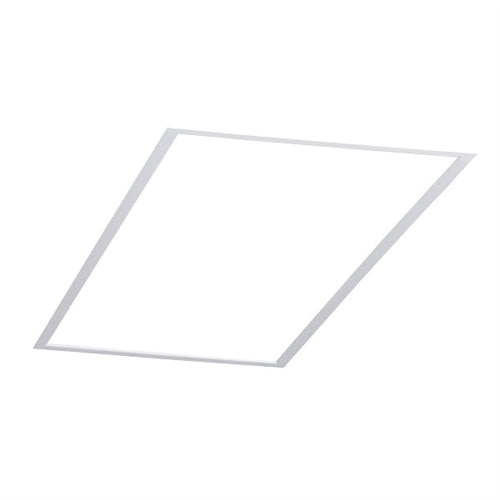

Columbia Lighting SRP24-35VLG-EDU 2'x4' LED Scaler Edge-Lit Flat Panel, 80 CRI, 3500K, 6812-7663 Lumens, Grid Ceiling, 0-10V Dimming,

Price: $170.36

MODEL: CL-SRP24-138

Usually Ships in 3-5 business days. Urgent Project? Contact Us

Ordering a large quantity?Request a quote

description

PRODUCT SPECIFICATIONS
CONSTRUCTION

Extruded aluminum frame has a matte white finish and clean frame-to-lens transition

OPTICS

Acrylic blend light guide with frosted/ textured outer lens provides edge to edge illumination without pixelation or bright spots

INSTALLATION

ELECTRICAL

CONTROLS

Optional SpectraSync offers a Tunable White solution and integrates seamlessly into a variety of control systems
NX Lighting Controls provides options for wired or wireless connectivity for NX system deployments

CERTIFICATIONS

All luminaires are built to UL 1598 standards and bear appropriate cULus labels
CSA certified to UL 924 standards with battery pack
Damp location label standard
Tested in accordance with ISO 14644-1; suitable for ISO Class 5-9 positive and negative pressure clean rooms
NX is available in U.S., Canada and Mexico.
For other locations consult factory
UL Sanitation certified to NSF 2 Food Equipment standard for non-food zones
The DTS, Dimming Bypass Module, is for emergency circuit control loads including sensors and wireless systems UL certified to UL 924. See page 8 for wiring diagram.
Adheres to LM79, LM80, and TM21 industry standards for photometrics and lifetime calculations

WARRANTY
