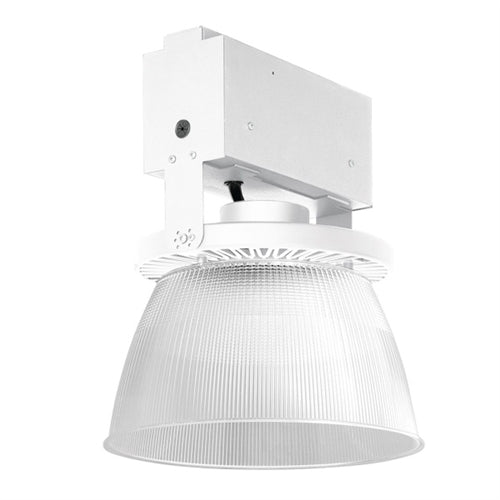

Columbia Lighting UTB2-830-MM-EDU-WA16-WH-N-ELL14 High Bay LED, Gen 2, 80 CRI, 3000K, 0-10V Dimming, 120-277V, Clear Acrylic 16", White, No Lens, Emergency Battery Pack
Columbia Lighting UTB2-830-MM-EDU-WA16-WH-N-ELL14 High Bay LED, Gen 2, 80 CRI, 3000K, 0-10V Dimming, 120-277V, Clear Acrylic 16", White, No Lens, Emergency Battery Pack
Regular price
Price:
$886.96
Regular price
Price:
Sale price
$886.96
Unit price
per
MODEL: CL-UTB2-179
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
CONSTRUCTION
CONSTRUCTION
- Housing: Die-Cast Aluminum
- Pendant mount installation from 3/4" threaded conduit or fixture hook
- Symmetrical design for easy one-for-one replacement of existing high bays
- Weight: 15 lbs.
OPTICS
- Available in 12,000, 18,000 and 24,000 lumen packages to replace 175W, 250W and 400W HID
- Up to 162 LPW
SHIELDING (16" Diameter Reflectors)
- Clear Acrylic
- Translucent White
- Opalescent Acrylic
- Suspended Bead
- Anodized Aluminum
ELECTRICAL
- 0-10V standard with dimming range 100% to 10%
- 120-277V standard; optional 347V or 480V
CONTROLS
- NX Lighting Controls provides options for standalone and networked integrated sensor with wired or wireless connectivity for NX system deployments
- NX is available in U.S., Canada and Mexico.
CERTIFICATIONS
- Tested to CSA standards for UL 1598 Damp Location
- Emergency equipped fixtures labeled UL 924
- The DTS, Dimming Bypass Module, is for emergency circuit control loads including sensors and wireless systems listed to UL 924. See page 7 for wiring diagram.
WARRANTY
- 5 year warranty
