Cooper Streetworks UFLD-L-CA4-180-740-U-66-C-BZ-10K-PR7 180W LED Flood Light, COB Light Engine, 70 CRI, 4000K, 120-277V, NEMA 6H x 6V Wide Distribution, Slipfitter, Bronze, Series 10kV UL 1449 Surge Protective Device, Photocontrol Receptacle
Cooper Streetworks UFLD-L-CA4-180-740-U-66-C-BZ-10K-PR7 180W LED Flood Light, COB Light Engine, 70 CRI, 4000K, 120-277V, NEMA 6H x 6V Wide Distribution, Slipfitter, Bronze, Series 10kV UL 1449 Surge Protective Device, Photocontrol Receptacle
Regular price
Price:
$2,259.51
Regular price
Price:
Sale price
$2,259.51
Unit price
per
MODEL: Streetworks-UFLD-L-1295
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Construction
Construction
- Heavy-duty, die cast aluminum housing, driver compartment and driver housing door.
- A separate driver compartment and external fins provide optimal thermal management that result in longer LED and driver life.
- The housing, driver compartment and optical chamber are IP66 rated.
- Access to the driver for maintenance is achieved with a removable driver door using pan head screws.
- A one-piece silicone gasket seals the door to the fixture housing. The fixture is 3G vibration rated (ANSI C136.31) to ensure durability in area and site lighting applications.
- The LED chambers incorporate a vacuum metalized reflector that provides high-efficiency illumination.
- Optics are precisely designed to shape the NEMA type 6H x 6V wide distribution and 3H x 3V spot distribution, maximizing efficiency and application spacing.
- Clear glass tempered lens with full circumference form-in-place silicone gasket protects the optics from damage.
- CCTs available in 2200K, 2700K, 3000K, 4000K, 5000K or 5700K minimum 70 CRI.
- LED drivers are mounted to the removable die-cast aluminum doors for optimal heat sinking and ease of maintenance. 120-277V 50/60Hz, 347V 60Hz or 480V 60Hz operation.
- Integral 6kV surge is standard.10kV/10kA common and differential- mode surge protection available as an option. 0-10V dimming driver is standard to accommodate controls capability such as dimming and occupancy.
- NEMA 3-PIN twistlock photocontrol receptacle and NEMA 7-PIN twistlock photocontrol receptacles are available as options.
- Suitable for ambient temperatures from -40 degrees C to 40 degrees C. 87% lumen maintenance greater than 60,000 hours per IESNA TM-21 at 25 degrees C.
- Luminaire available with the field adjustable dimming controller (FADC) to manually adjust wattage and reduce the total lumen output and light levels. Comes pre-set to the highest position at the lumen output selected.
- Heavy-duty steel top and side visors control glare and spill light. 1/8” thick UV stabilized vandal guard shields glass lens from impact when mounted at low levels.
- Easy to install wire guard features a heavy-gauge welded construction with corrosion resistant polyester powder coat finish to protect glass from projected objects.

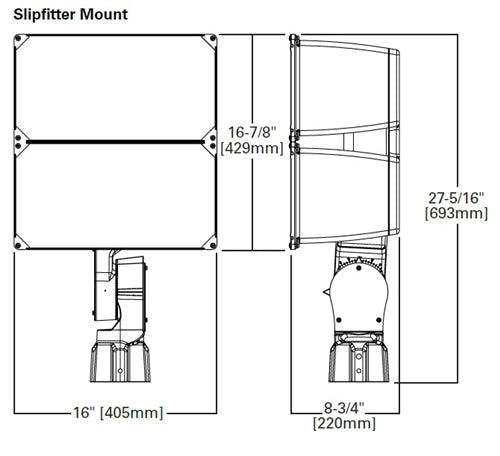

- Mounting options include an integral die-cast aluminum slipfitter that is preset to a tilt of 45 degrees.
- The knuckle base is supplied with a tooth lock adjustment that can be adjusted in 5° increments. Visual 15 degrees adjustment indicators on the knuckle allow for 180 degrees field rotation of the floodlight assembly.
- The slipfitter fits standard 2-3/8”-3” O.D. tenon.
- The trunnion mounting includes a 3/16” polyester powder coated galvanized steel trunnion with a 14/3 STW-A cord. The trunnion mount uses an interlocking slide adjustment that is locked in place with a set screw.
- Approximate Net Weight: 48 lbs. (22kgs.), 55 lbs. (25 kgs.) with Yoke
- EPA: 2.5 Sq. Ft.
- Housing and cast parts finished in five-stage super TGIC polyester powder coat paint, 2.5 mil nominal thickness for superior protection against fade and wear.
- Standard five-year warranty
