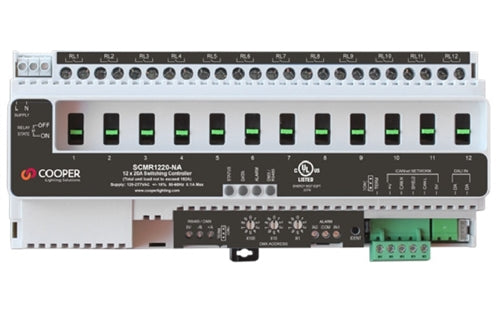

Cooper WaveLinx Wired SCMR1220-NA 12 Channel 20A Feed Relay Control Module
Cooper WaveLinx Wired SCMR1220-NA 12 Channel 20A Feed Relay Control Module
Regular price
Price:
$1,343.10
Regular price
Price:
Sale price
$1,343.10
Unit price
per
MODEL: WaveLinx-SCMR1220-NA
Usually Ships in 3-5 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
Key Features
Key Features
- 12 x 20A Mechanically held feed through relays
- Any phase on any input
- Mounts to standard Top Hat (TS35) DINRail
- Switches resistive, inductive and capacitive lighting loads
- Intelligent ‘Built in’ propagation delay for switching sequence 1-12
- Manual override of any channel
- Integral processor
- Digital network connections
- DALI input (12 address DALI end device)
- RS485 / DMX512 input with DMX base address rotary switches
- 2 x Auxiliary Inputs
- Configuration stored in Non Volatile EEPROM
- Configurable start up mode
Mechanical
- Weight: 0.8kg, 1.7637lbs
- Operating temperature: +2ºC to +50ºC
- Note: All enclosures must be adequately ventilated
- Max storage temperature: +60ºC
- Humidity: +5 to 95% non-condensing
- Environmental protection: IP20
Electrical
- Control: Via digital network connection, DMX or DALI
- Supply: 120-277VAC -/+ 10% 50/60HZ, 0.1A MAX
- Integral iCANnetTM Network Power Supply: 15V 500mA
- Output channel current: Maximum 20A at 40ºC
- (Total unit load not to exceed 192A)
- Note: Fully loaded channels should be spaced every other channel to prevent heat buildup
- Relay outputs: Capable of switching capacitive inductive or resistive loads
- Loads - maximum cable size: 12AWG per circuit
- Protection: Provided by installer - use supply MCB, 6A or less
Standards/Ratings
- cULus Listed - Energy Management Equipment (UL916)
- Manufactured in an ISO 9001 certified factory
- Meets ASHRAE Standard 90.1 requirements
- Meets IECC 2015 requirements
- Meets CEC Title 24 requirements
Environmental Regulations:
- RoHS Directive 2011/65/EU
Warranty
- Five year warranty standard
Download PDF Spec (English)Share your knowledge of this product. Be the first to write a review »
