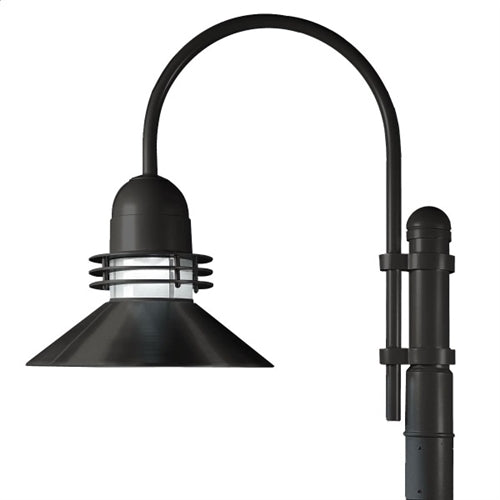

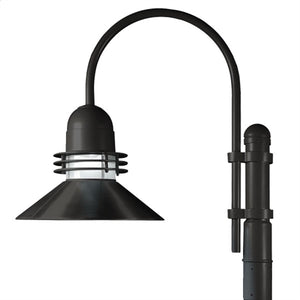

Home > Hubbell Lighting > Current UCM2-LK-36L-460-4K7-3-BEL Universe Medium Upgrade Kit, 36 LEDs, 700mA Microcore Equivalent, 4000K, 70 CRI, Type III Distribution, Bell Hood
Current UCM2-LK-36L-460-4K7-3-BEL Universe Medium Upgrade Kit, 36 LEDs, 700mA Microcore Equivalent, 4000K, 70 CRI, Type III Distribution, Bell Hood
Current UCM2-LK-36L-460-4K7-3-BEL Universe Medium Upgrade Kit, 36 LEDs, 700mA Microcore Equivalent, 4000K, 70 CRI, Type III Distribution, Bell Hood
Regular price
Price:
$688.05
Regular price
Price:
Sale price
$688.05
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
CONSTRUCTION
ORDERING INFORMATION
CONSTRUCTION
- All internal and external hardware are stainless steel
- Luminaire finish consists of a five stage pretreatment regimen with a polymer primer sealer, oven dry off, and top coated with a thermoset super TGIC polyester powder coat finish.
- Optical bezel finish matches the luminaire housing
- Molded silicone gasket ensures a weather-proof seal around each individual LED
- Features revolutionary individual LED optical control based on high performance TIR optical designs
- House Side Shield is available on Standard and Clear Lens options except any Type 5 distribution. House Side Shield is not available for any distribution using a Diffused Lens
- Fixtures must be grounded in accordance with national, state and/or local electrical codes.
- Failure to do so may result in serious personal injury.
- Luminaires have integral surge protection, UL recognized and have a surge current rating of 10,000 Amps using the industry standard 8/20uSec wave and surge rating of 372
- Drivers are UL recognized with an inrush current maximum of <20.0 Amps maximum at 230VAC
- 100%-1% dimming range. Fixture will be wired for low voltage 0-10V dimming control
- Driver and surge suppressor are mounted to a prewired tray with quick disconnects that may be removed from the gear compartment
- ETL listed under UL 1598 and CSA C22.2 No. 250.0-08 for wet locations
ORDERING INFORMATION
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
