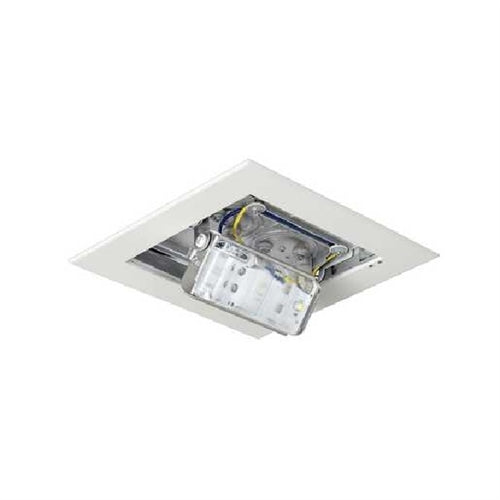

Dual Lite CLML-XK Compact Concealed LED Recessed Emergency Light, NiMH Battery, Less Rough-In Kit
Dual Lite CLML-XK Compact Concealed LED Recessed Emergency Light, NiMH Battery, Less Rough-In Kit
Regular price
Price:
$550.82
Regular price
Price:
Sale price
$550.82
Unit price
per
MODEL: Dual-Lite-CLML-XK
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
APPLICATION
APPLICATION
- The CLML series is a concealed and recessed, self-contained emergency light with fully automatic operation
- Applications include small and large open floor-plans, long hallways, and areas where obtrusive surface mounted emergency lighting is not desirable
- Textured white powder coat finish
- Lamp head housing constructed of high strength zinc frame and door
- 20 ga. steel back box, IC listed

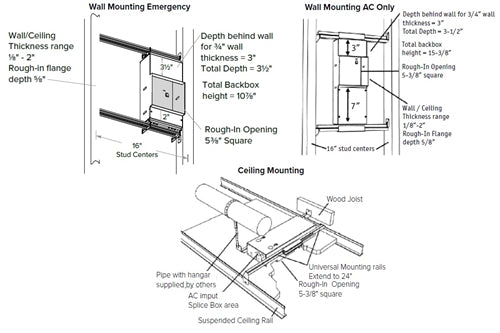

INSTALLATION
ELECTRICAL- Recessed mount in wall or ceiling
- Rough-in kit can be ordered separately
- Recessed depth of 3"
- 120 or 277VAC input, 60Hz
- AC only units designed to be used with central power systems (inverters, generators, etc.) 120 or 277 VAC field selectable input
- Microprocessor controlled circuitry
- LED board contains 3 high power LEDs rated for 10,000 hours which provide 561 lumens, LED color temperature of 5000K
- Optics are adjustable up to 70 degrees and provide up 52' spacing
COMPLIANCES
WARRANTY- UL924 Listed for Damp Locations
- NFPA 101 and NFPA 70
- OSHA
- CEC T20
- NYC Approved, Calendar #48850
- Chicago Plenum Listed Option(CP)
- 3 year full unit warranty
Download PDF Specification Share your knowledge of this product. Be the first to write a review »
