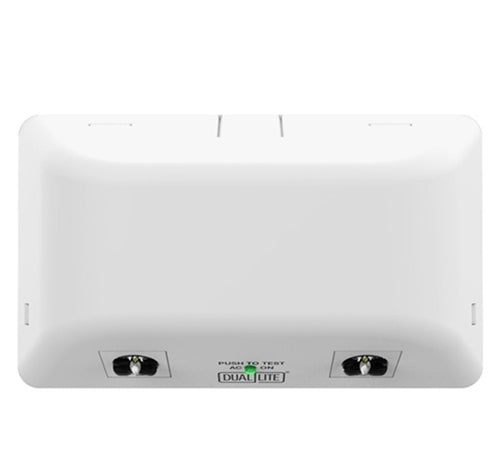

Dual Lite EV4D-02WAL 4W Architectural LED Emergency Light, Damp Location Listed, 2W LED lamps with Wide Area Lens

Dual Lite EV4D-02WAL 4W Architectural LED Emergency Light, Damp Location Listed, 2W LED lamps with Wide Area Lens

Price: $148.27
Price: $148.27

MODEL: Dual-Lite-EV4D-02WAL
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

PRODUCT FAMILY SPECIFICATIONS
APPLICATION
  • The EV Series is a compact architectural emergency lighting unit designed for ease of installation, reliable operation, and optimized path of egress spacing
  • The special lens achieves 50’ multiple unit spacing when applied at 7.5’, making the EV unit a great selection for long hall-ways like those in conference centers, hotels, and large open spaces
  • The EV Series includes a micro-controlled pulse charger and long-life Nickel Metal Hydride (NiMH) battery
  • The EV accepts 120/277VAC input at 60 Hz
CONSTRUCTION
  • The EV Series housing, back-plate and lamp-heads are made from durable injection molded thermoplastic
  • LED lens are made of acrylic
INSTALLATION
  • Universal mounting template molded in the back plate aids in quick installation
  • Unit mounts to all single gang and standard 3 1/2” and 4” square or octagonal electrical boxes
  • Conduit entry through a molded-in knock-out at the top center
  • Pre-stripped AC input leads provided
  • Unit is designed for wall mount only
ILLUMINATION
  • The EV Series provides bright and uniform illumination to achieve greater than 50’ spacing when applied at 7.5’
  • This is achieved by high power LED’s and special wide area lenses that provide a superior path of egress
  • Lamp-heads are adjustable based on mounting height, and have an optimized angle to maximize spacing
COMPLIANCES
  • Listed to UL924 Standard
  • NFPA 101
  • NFPA 70
  • RoHS
  • CEC T20 Compliant
WARRANTY
  • LED Lifetime Warranty
  • EV Full 3 year warranty
  • EV with Spectron Full 5 year warranty
