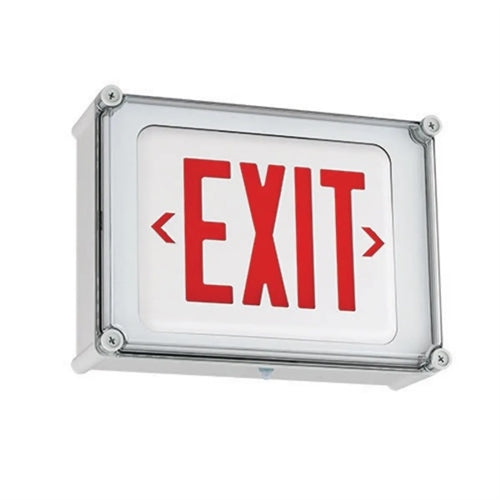

Dual Lite EVE4XRWE Wet Location NEMA Exit Sign, Red Letter, White Finish, Emergency Operation
Dual Lite EVE4XRWE Wet Location NEMA Exit Sign, Red Letter, White Finish, Emergency Operation
Regular price
Price:
$329.98
Regular price
Price:
Sale price
$329.98
Unit price
per
MODEL: Dual-Lite-EVE4XRWE
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
Application
Application
The EVE4X is designed for indoor or outdoor wet or dusty environments requiring corrosion resistant, UL50 type 4X exit signs with energy-saving, long-life LEDs. Available in AC only or emergency operation which includes a nickel metal hydride(NiMH) battery and provides a full 90 minutes of emergency exit illumination in the event of power failure. Includes a constant current charger. The EVE accepts 120/277VAC input at 60Hz with a self-diagnostic option.
Construction
The EVE4X Series enclosure and cover is constructed of impact resistant.
Polycarbonate with light gray color. The cover is secured to the housing by means of four polyamide screws. A polyurethane gasket provides a watertight and dust-tight seal. A white trim plate installs under the housing cover. Directional arrows are snap-in chevron type.
Installation
EVE4X Series exit signs are designed to mount to the wall through four 1/4" integral mounting holes in the unit housing. Mounting hardware is supplied by others. Units must be surface wired for utility power input.
Housings are easily drilled or punched to accept sealed conduit hubs (supplied by others).
Illumination
The EVE4X series provides bright and uniform exit panel illumination by using energy saving, long-life red or green LEDs with a 10 year lifecycle. The panel face exceeds UL924 requirements for brightness and uniformity.
Compliances
Listed to UL 924 for Wet Locations
Warranty
EVE4X Full 5 year warranty
Battery, 3 years full, 7 years pro-rata
Construction
The EVE4X Series enclosure and cover is constructed of impact resistant.
Polycarbonate with light gray color. The cover is secured to the housing by means of four polyamide screws. A polyurethane gasket provides a watertight and dust-tight seal. A white trim plate installs under the housing cover. Directional arrows are snap-in chevron type.
Installation
EVE4X Series exit signs are designed to mount to the wall through four 1/4" integral mounting holes in the unit housing. Mounting hardware is supplied by others. Units must be surface wired for utility power input.
Housings are easily drilled or punched to accept sealed conduit hubs (supplied by others).
Illumination
The EVE4X series provides bright and uniform exit panel illumination by using energy saving, long-life red or green LEDs with a 10 year lifecycle. The panel face exceeds UL924 requirements for brightness and uniformity.
Compliances
Listed to UL 924 for Wet Locations
Warranty
EVE4X Full 5 year warranty
Battery, 3 years full, 7 years pro-rata
