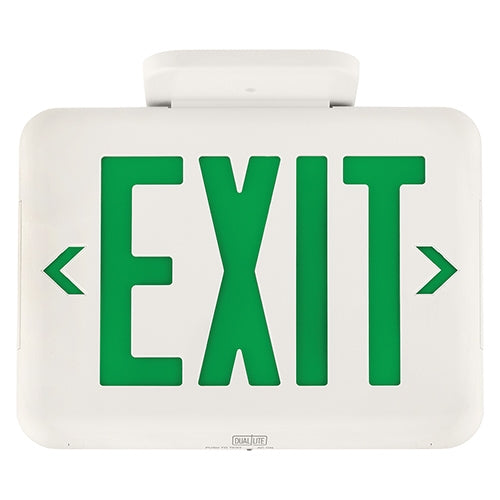

Dual-Lite EVEUGWE LED Exit Sign, Single/ Double Face, Green Letters, White Finish, Emergency Operation, No Self-Diagnostics

Application
The EVE series is a compact architectural LED exit sign designed for fast installation and reliable service. The EVE Series has a flame-rated, UV stable thermoplastic housing with a lightly textured white or black finish. Available in AC only or emergency operation which includes a nickel metal hydride(NiMH) battery and provides a full 90 minutes of emergency exit illumination in the event of power failure. Includes a constant current charger. The EVE accepts 120/277VAC input at 60Hz and optional 220-240VAC input at 50 or 60 HZ with self-diagnostics option. Available with special worded options.

Construction
The EVE series housing and canopy are made from durable injection molded ABS thermoplastic

Installation
EVE can be wall mounted by use of back-plate with molded-in template, ceiling or end mounted with the use of supplied canopy to standard 3 ½” or 4” square or octagonal electrical boxes. Pre-stripped AC input leads provided.

Illumination
The EVE series provides bright and uniform exit panel illumination by using energy saving, long-life red or green LEDs with a 10 year lifecycle. The panel face exceeds UL924 requirements for brightness and uniformity.

Compliances
Listed to UL924 Standard
NFPA 101
NFPA 70
Damp Location (Consult Factory)

Warranty
EVE Full 5 year warranty
Battery, 3 years full, 7 years pro-rata

Ordering Information
