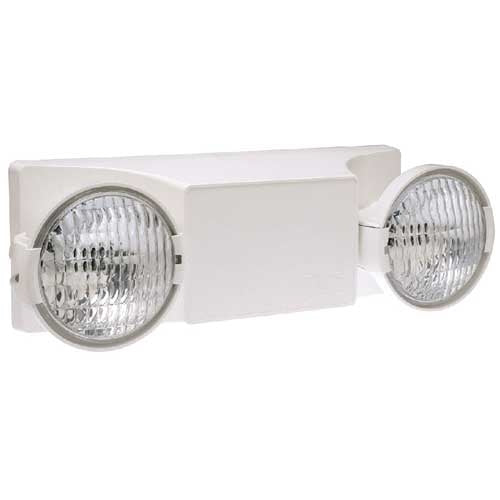

Dual-Lite EZ-2I 7.2W PAR 36 Dual Emergency Light, Spectron Self-Diagnostics, White Finish

Application

The EZ-2 series is a commercial emergency lighting unit designed for fast wall mount installation and reliable service. The EZ-2 has a flame-rated, UV stable thermoplastic housing and a bright while textured finish. Lamp-heads are fully adjustable. Unit provides a full 90 minutes of emergency lighting. Includes fully automatic solid-state charger and lead calcium battery. The EZ-2 accepts 120/277VAC input. Available with optional Spectron self-test/ self-diagnostic circuitry.

Construction

The EZ-2 series housing and lamp-heads are made from durable injection molded thermoplastic. Standard models supplied with 2 ea. 6VDC, 5.4 watt sealed beam type lamp-heads. EZ-2I Spectron equipped model supplied with 2 ea. 6VDC, 7.2 watt sealed beam type lamps.

Installation

Universal mounting template and wiring knock-out molded in the back plate aids in quick installation. Unit mounts to all standard 3 ½” and 4” square or octagonal electrical boxes. Conduit entry through a moldedin knock-out at the top center. Pre-stripped AC input leads provided. Mounting hardware is not included.

Illumination

The EZ-2 series provides illumination with two fully adjustable PAR36 type lamp-heads. Photo-metrics are available for download at www.dual-lite.com

Compliances

• UL924 Emergency Listed
• UL924 Damp Location Listed(EZ-2D)

Warranty

• Standard Model- Full 3 year warranty
• Spectron EZ-2I- Full 5 year warranty
