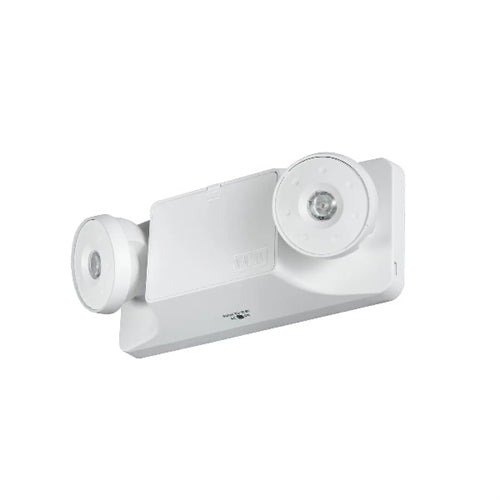

Dual Lite EZ-2LI LED lamp head Dual Emergency Light with Spectron Self-test/Self-diagnostic, Damp Location Listed, Wall Mount, White Finish
Dual Lite EZ-2LI LED lamp head Dual Emergency Light with Spectron Self-test/Self-diagnostic, Damp Location Listed, Wall Mount, White Finish
Regular price
Price:
$164.27
Regular price
Price:
Sale price
$164.27
Unit price
per
MODEL: Dual-Lite-EZ-2LI
Usually Ships in 4-6 business days. Urgent Project? Contact Us
Couldn't load pickup availability
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
APPLICATION
ORDERING INFORMATION
APPLICATION
- The EZ-2 series is a commercial emergency lighting unit designed for fast wall mount installation and reliable service
- Optional wall plate for retrofit or new construction
- The EZ-2 has a flame-rated, UV stable thermoplastic housing available in white and black textured finish
- Includes an easy access front battery compartment for ease of maintenance
- Unit provides a full 90 minutes of emergency lighting
- Includes fully automatic microprocessor-controlled pulse charger and Nickel Metal Hydride(NiMH) battery
- The EZ-2 accepts dual-voltage input of 120 or 277VAC at 60 Hz
- Available with optional Spectron self-test/ self-diagnostic circuitry
CONSTRUCTION
INSTALLATION- The EZ-2 series housing and lamp heads are made from durable injection molded thermoplastic
- Models use two high-output 1 watt LED lamp heads made with an acrylic lens
- Universal mounting template and wiring knock-out molded in the back plate aids in quick installation
- Unit can be ceiling or wall mounted

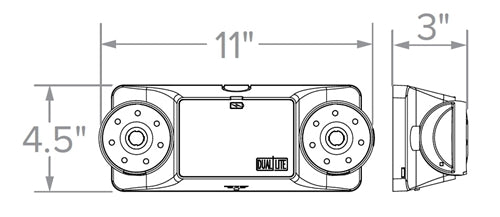

- Unit wall mounts to all standard 3 1/2" and 4" square or octagonal electrical boxes
- Conduit entry through a molded-in knock-out at the top center
- Ordered separately, the EZ-2 Adapter plate accessory matches the larger footprint of previous EZ-2 fixtures. It eliminates the need for cosmetic wall fixes during retrofit
- Fixture includes a battery compartment and door, which allows easy access to the battery assembly and connection for ease of service
- Pre-stripped AC input leads provided
- The EZ-2 series provides illumination with two fully adjustable high lumen LED lamp heads
- Listed to UL924 Standard
- NFPA 101
- NFPA 70
- Damp Location Listed to UL924
- CEC T20 Compliant
- LED Lifetime Warranty
- EZ-2 Full 3-year Warranty
- EZ-2 with Spectron Full 5-year Warranty
ORDERING INFORMATION
