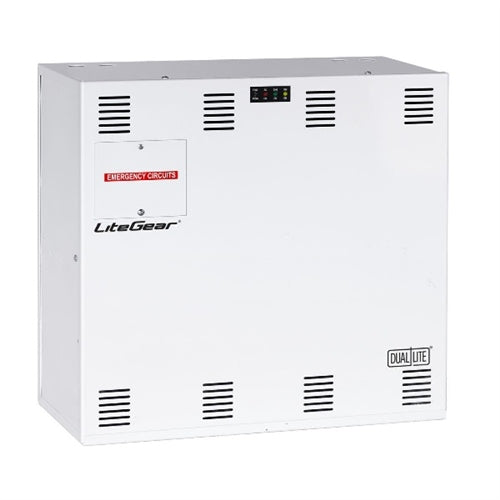

Dual-Lite LG375S LiteGear 375VA/W Single-Phase Central Lighting Inverter, Surface Wall Mount

Price: $1,943.08

MODEL: Dual-Lite-LG375S

Usually Ships in 4-6 business days. Urgent Project? Contact Us

Ordering a large quantity?Request a quote

description

PRODUCT SPECIFICATIONS
APPLICATION

Designed for indoor installation in commercial or industrial applications.
Emergency AC power is supplied to lighting fixtures equipped with incandescent, linear fluorescent, compact fluorescent or LED lamps
The lighting load can be installed at a distance of up to 1,000 feet from the LiteGear central lighting inverter
Observe all required AC conductor sizing requirements
When using LED lamps, consider LED in-rush current in load calculations

OPERATION

When normal utility supplied power is interrupted, the LiteGear Series unit will automatically transfer to emergency mode in less than 2-seconds and begin supplying inverted, battery-derived pure sine wave output power to the load for 90 minutes
The unit is capable of operating normally on, normally off, switched or dimmed loads
A low voltage battery disconnect circuit will prevent "deep discharge" damage to the battery
The charging circuit will bring the batteries to full recharge within UL time standards
A "brownout" circuit will automatically transfer the unit to emergency power if the utility voltage falls to a pre-determined "low line" limit

CONSTRUCTION

The LiteGear enclosure and cover are constructed of heavy-duty, steel with a white powder-coat paint finish.

COMPLIANCES

WARRANTY
