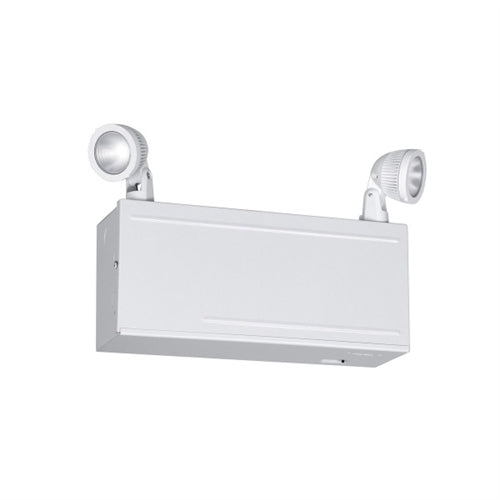

Dual Lite LM80-12V-1205L 80W 12V High Capacity Emergency LED Light, Lead Calcium Battery, No Self Diagnostics, 5W LED Lamp Heads

Price: $403.43

MODEL: Dual-Lite-LM80-12V-1205L

Usually Ships in 3-5 business days. Urgent Project? Contact Us

Ordering a large quantity?Request a quote

description

PRODUCT SPECIFICATIONS
APPLICATION

The LM provides emergency lighting for industrial and commercial applications
The LM offers high capacity for higher lamp wattages and remote capability
Offered with 6 and 12 VDC operation, 10.8 - 130 watts of capacity, and multiple lamp wattages
The steel housing provides strength and durability.

CONSTRUCTION

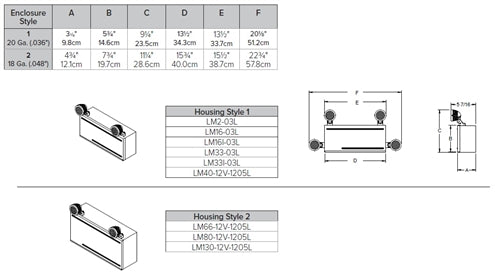

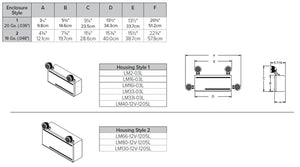

LM has two housing sizes
Size 1 housing used with 10 - 40 watt units and is made of 20-gauge corrosionresistant steel
Size 2 housing used with 66 - 130 watt units and is made of 18-gauge corrosionresistant steel
3W lamp head housings are injection molded
5W lamp heads feature a thermoplastic lamp-back with die-cast body and textured, tempered glass lens
Housing and lamp heads in white color

INSTALLATION

Mount through universal knock-out pattern to standard electrical boxes up to 4" square
Also mounts to wall surface through keyhole mounting slots
Wiring terminals and fused distribution board located inside of housing for remote head wiring
Pre-stripped transformer leads provided

ILLUMINATION

COMPLIANCES

WARRANTY
