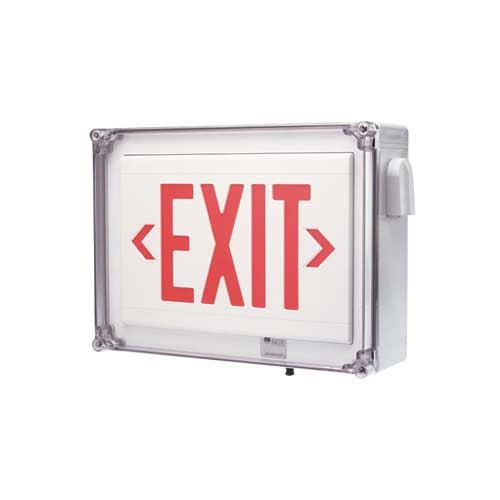

Dual-Lite LN4XRWEI Wet Location Thermoplastic Exit Sign, 120/277V, Red Letters, White Finish, Emergency Operation, Spectron Self-Diagnostics

Application
The LN4X is an application for indoor or outdoor locations with wet or dusty environments requiring corrosion-resistant, UL 50 type 4X exit
signs with energy-saving, long-life LED lamp assemblies.

Construction
The LN4X Series is constructed of neutral gray, high-impact-resistant, glass filed polycarbonate with a clear polycarbonate cover. The cover
is secured to the housing by means of four slotted polyamide screws.
An oil resistant gasket supplied with a cover provides a watertight and dust-tight seal. A white trim plate installs under the housing cover.
Letter are offered standard in a choice of green or red. Directional arrows are snap-in chevron type. Emergency models come standard
with a waterproof housing.

Installation

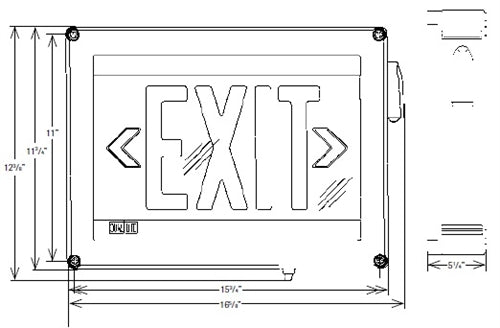

LN4X LED Series exit signs are designed to mount to wall through four 1/4” integral mounting holes in the unit housing. Mounting hardware
is supplied by others. Units must be surface wired for utility power input. Housings are easily drilled or punched to accept sealed conduit
hubs (supplied by others).

Illumination
LN4X LED Series exit signs come standard with energy-saving, LED lamp assemblies that allow operation from 120 or 277VAC. All models
meet UL 924 requirements for exit face illumination or color contrast ratio and exceed NFPA 101 illumination requirements. LED lamp assemblies are arranged to provide a very evenly illuminated exit legend. Average useful life exceeds 20 years under normal operating conditions. LED lamps assemblies in emergency models provide illumination in AC and battery power modes.

Compliances
Listed to UL 924
UL Wet/Damp location listed

Warranty
Fixture: 5 Years Full
Battery: 2 Years Full, 8 years Pro-Rata
