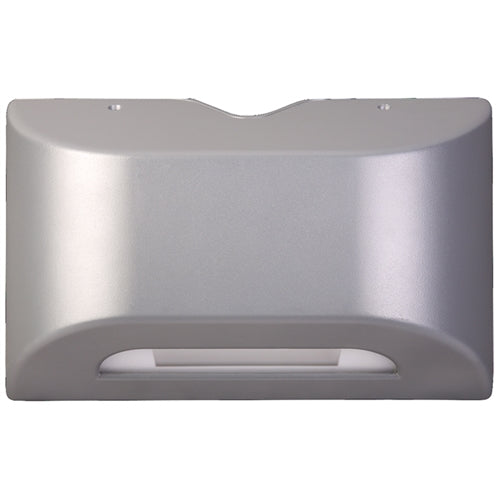

Dual-Lite PGF1P 17.7W High Performance LED Sconce Light, Platinum Silver Color

Application
The PGF1 is a maintenance -free indoor/outdoor die-cast architectural LED Sconce. It is wet location listed and offers pathway, perimeter or entry lighting at a mounting height of 8 to 10 feet.

Construction
Housing and mounting plate are constructed of 0.125” die-cast aluminum and the housing is fully gasketed. Lens is acrylic with 95% light transmission to reduce glare. The reflector is electro-polished aluminum with 95% reflectance. Housing is powder coated electro-depostion paint available in 2 colors. The PGF1 includes a field installable full cut-off shield to address "dark sky” compliant requirements. An optional 120VAC photo-control is also available.

Installation
Universal backplate knockouts for mounting to standard 31⁄2", 4“ octagonal and 4" square electrical boxes. Backplate mounting is performed using installer supplied hardware. An adhesive-backed neoprene gasket is provided to ensure a waterproof seal. A 1⁄2" – 1⁄4 NPT threaded conduit opening is provided at the top of the enclosure
and sealed with a closure plug. The housing “snaps” to the back plate by a “pin and socket” arrangement, and is secured with two Phillips head screws.

Electronics
Number of Lamps: 7 High Output LED’s
Lamp Type: Solid State High Output LED’s
Lamp Color: Cool White, 4300K
Total Lamp Output: 1067 Lumens
Lumen Maintenance: 50,000 hours
LED Light Engine: Constant current Driver meets UL1310 class 2 for SSL
and FCC Class B, rated for 50,000 hours
Voltage Input: 120 to 277VAC, 50/60 Hz.
Input Power Requirements: 17.7 watts
Fixture Efficacy: 60.3 Lumens per Watt

Compliances
CSA Certified to UL1598 for use in Wet locations
Patent No. D627,916

Warranty
3 Years Full

Ordering Information
