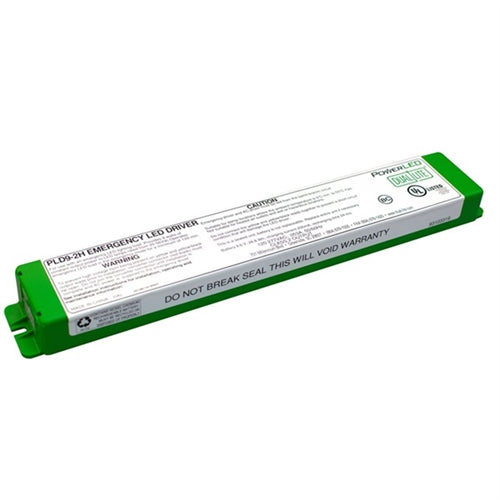

Dual Lite PLD9-2H 9W LED Battery Pack, 120 minutes, 120-277V

Dual Lite PLD9-2H 9W LED Battery Pack, 120 minutes, 120-277V

Price: $140.25
Price: $140.25

MODEL: Dual-Lite-PLD9-2H
Add To Wishlist
Request a Quote
Ordering a Large Quantity? Request a quote
View full details

description

PRODUCT FAMILY SPECIFICATIONS
APPLICATION
  • The Dual-Lite PLD9/10 is a universal input (120-277V) emergency LED battery pack that works with an AC LED driver to allow an LED lighting load to be used in both normal and emergency operation.
  • When normal AC power is lost, the PLD9/10 operates to provide 9 or 10 watts of constant emergency power at a rated output voltage of 20-56Vdc
  • The constant power design provides backup for a minimum of 90 minutes (10 watt output), or 120 minutes (9 watt output) with no loss of emergency lumen output
  • When used with emergency-only LED fixtures, no AC driver is needed
  • The UL924 Listing allows for both field and factory installations of suitable LED loads including LED luminaires, DC voltage driven LED replacements for fluorescent lamps and others
CONSTRUCTION
  • Compact case constructed of polycarbonate thermoplastic.
  • The unit contains a solid-state charger with automatic transfer circuit, a 2-wire test switch and LED charging indicator light, and a high-temperature, Nickel-Cadmium battery
INSTALLATION
  • The PLD9/10 emergency battery pack does not affect normal LED fixture operation and may be used with either switched or unswitched fixtures
  • If a switched fixture is used, an unswitched hot lead must be connected to the emergency ballast
  • The emergency battery packs must be fed from the same branch circuit as the AC
LED driver
  • Due to its thermoplastic construction, the PLD9/10 must either be installed inside the fixture, or enclosed if remote mounted outside the fixture
  • The PLD emergency battery pack is suitable for use in damp locations where the ambient temperature is between 0°C (32°F) and 55°C (131°F). It is not suitable for installation in heated air outlet fixtures and wet or hazardous location fixtures
ILLUMINATION
  • The PLD9/10 will operate an LED load, that has a power rating of 10 watts or greater, for a minimum of 90 minutes , or 9 watts or greater for a minimum of 120 minutes
  • Using the LED load’s efficacy in lm/w, as published by the Design Lights Consortium website (http://www.designlights.org), Energy Star - Certified Products - product finder website (http://www.energystar.gov/productfinder) or given by the luminaire manufacturer on product catalog specification sheets, lumen output can be calculated by multiplying by the PLD9/10 output power (10w or 9w).
COMPLIANCE
  • UL 924 Recognized and Damp Location Listed for field installation
  • UL 1310 Certified (Class 2 output)
  • CSA C22.2 No. 141 (Canadian Life Safety Standard, PLD10 Only)
  • NFPA 101 (Life Safety Code)
  • NFPA 70 ( National Electrical Code)
  • CEC Title 20 Compliant (CEC Battery Charger Efficiency Standard)
WARRANTY
  • 5 Year Full Warranty
