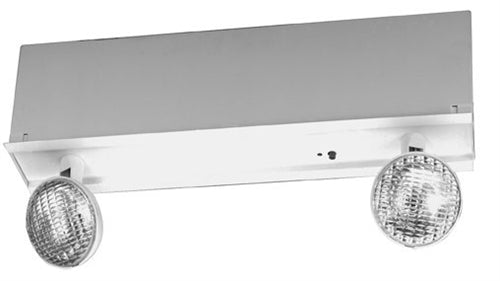

Dual-Lite TG50-12V 30W Recessed T-Grid Emergency Light, Lead-Calcium Battery, 12V

Application
Decorative Emergency Lighting unit designed for fast, easy, recessed installation in suspended ceilings. Additional capacity for powering remote fixtures.

Construction
The T-Grid unit is constructed of a 20-gauge, all metal junction box housing and a trim plate with injection-molded, thermoplastic lamp housing all in a white finish.

Installation
The T-Grid Series is designed for recessed mounting in suspended grid ceilings. The trim plate dimensions allow placement of the unit between the suspended ceiling’s grid support structure. The unit must be fastened to the building’s structure in accordance with local codes; holes in the unit’s mounting ears facilitate this requirement. Ceiling tile may require trimming for finished installation. AC, DC-battery and remote fixture connections are made inside the unit housing.
Lampheads attach directly to unit trim plate. AC input leads are provided for wiring. All AC connections made inside unit housing.

Illumination
Lamp housings are fully adjustable. Lighting is provided by a 6 volt/12 volt, 7.2 watt sealed-beam incandescent lamps of a glare-free design.
Lamps have a rated life of 100 hours.

Compliances

• UL 924 Listed
• NFPA 101 Life Safety Code

Warranty
Fixture: 3 Years Full, 5 Years Full with Spectron

Batteries

• Lead-Acid: 2 Years Full, 3 Years Pro-Rata
• Ni-Cad: 2 years full, 8 Years Pro-Rata
