Dual-Lite UFO-CF2 One 13W-42W Twin, Quad or Triple Tube Lamp, One 22W-40W T5 Circline or One 18W-39W Long Compact Fluorescent Lamp Emergency Battery Pack, 700-1250 Lumens

Application
The UFO-CF series emergency battery packs work in tandem with an AC ballast to convert one 4-pin compact fluorescent lamp for emergency lighting operation including low mercury and amalgam content lamps, eliminating the need to install additional emergency lighting units. The UFO-CF1 can be used with one 18W-42W (4-pin) twin, quad or triple tube compact fluorescent lamp. The UFO-CF2 and UFO-CF2-CLD can operate one 13W-42W twin, quad or triple tube lamp, one 22W-40W T5 circline or one 18W-39W long compact fluorescent lamp. The UFO-CF emergency battery is compatible with most single and multi lamp electronic, magnetic, standard, energysaving and dimming AC ballasts. UFO-CF2-CLD has an extended operating temperature range for cold environment applications For information about specific lamp and ballast compatibility, please call the factory.

Construction

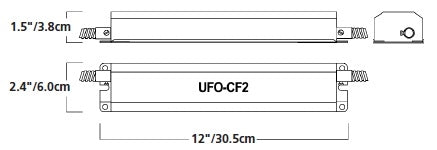

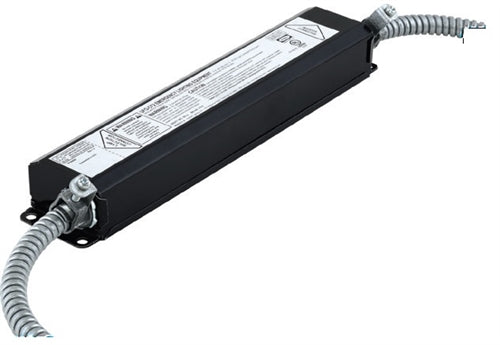

All unit housings consist of a compact case constructed of 22-gauge sheet metal, finished in black enamel, with 2’ of flexible conduit.

Illumination
During emergency illumination, one lamp is illuminated, even if installed with a multi-lamp fluorescent fixture. Initial emergency output is up to 860 lumens with the UFO-CF1. Initial emergency output is up to 1250 lumens with the UFO-CF2 and UFO-CF2-CLD.

Installation
The UFO-CF compact fluorescent emergency battery pack does not affect normal fixture operation and may be used with either a switched or unswitched fixture. If a switched fixture is used, an unswitched AC power supply must also be connected to the UFO-CF compact fluorescent battery pack, and must be fed from the same branch circuit as the fixture’s AC ballast. The UFO-CF may be installed on or remote from the fixture. For remote installation, the UFO-CF may be installed up to one-half the distance the AC ballast manufacturer recommends for remote location from the fixture, or up to 6 feet, whichever is less. Install the test switch for visual confirmation of the charge indicator LED and simplified testing. The test switch may be installed in the ceiling near the fixture.

Compliances
UL924 Damp Location Listed
NFPA 101 (Life Safety Code)
NFPA 70 (National Electrical Code)

Warranty
5 Years Full Warranty
