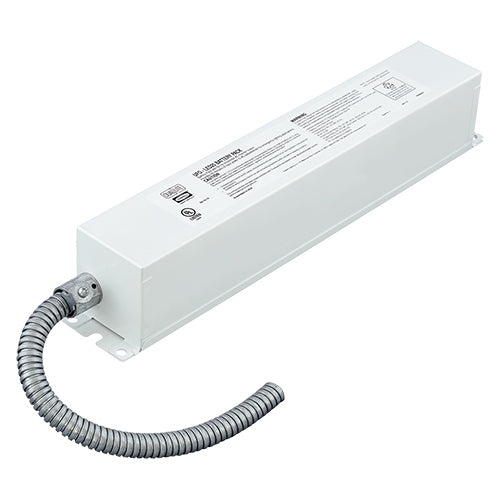

Dual-Lite UFO-LED25 Emergency Lighting LED Power Pack, 25VA/W, 120-277V

Application
The UFO LED series battery pack inverter unit is designed to work in tandem with an AC ballast to power an LED luminaire in the event of interruptions or failures, eliminating the need to install additional emergency lighting units. The UFO-LED will operate the LED luminaire at full lumen output continuously for 90 minutes during an input power interruption. It can be used with normally-on, normally-off, or switched luminaires.

Construction
The UFO-LED enclosure and cover are constructed of heavy 22 gauge steel with a white paint finish. The unit contains a solid state charger with automatic transfer circuit, LED charge indicator light, and a high temperature Nickel-Cadmium battery.

Installation
The UFO-LED does not affect normal fixture operation and may be used with a switched or unswitched fixture. If a switched fixture is used an unswitched AC power supply must also be connected to the UFOLED, and must be fed from the same branch circuit as the fixture’s AC ballast. For remote installation, the UFO-LED may be installed up to 250 feet from the fixture.

Illumination
UFO-LED provides full lumen output during emergency illumination for a minimum of 90 minutes.

Compliances
UL 924 Damp Location Listed
NFPA 101 (Life Safety Code)
NFPA 70 (National Electrical Code)

Warranty
5 Years Full Warranty
