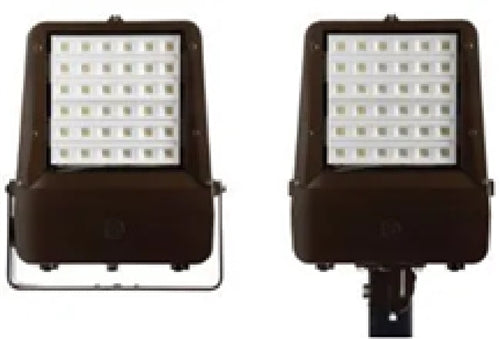

Home > Hubbell Lighting > Evolve EFH1-02-0-40-66-7-40-N-A-T1-DKBZ High Output LED Flood Light, Gen 2, 120-277V, 40000 Lumens, NEMA 6x5 Distribution, 70 CRI, 4000K, No PE Receptacle, Non Dimmable, No Control, Trunion Mount, Dark Bronze

  • Evolve EFH1-02-0-40-66-7-40-N-A-T1-DKBZ High Output LED Flood Light, Gen 2, 120-277V, 40000 Lumens, NEMA 6x5 Distribution, 70 CRI, 4000K, No PE Receptacle, Non Dimmable, No Control, Trunion Mount, Dark Bronze
1 1

Evolve EFH1-02-0-40-66-7-40-N-A-T1-DKBZ High Output LED Flood Light, Gen 2, 120-277V, 40000 Lumens, NEMA 6x5 Distribution, 70 CRI, 4000K, No PE Receptacle, Non Dimmable, No Control, Trunion Mount, Dark Bronze

Evolve EFH1-02-0-40-66-7-40-N-A-T1-DKBZ High Output LED Flood Light, Gen 2, 120-277V, 40000 Lumens, NEMA 6x5 Distribution, 70 CRI, 4000K, No PE Receptacle, Non Dimmable, No Control, Trunion Mount, Dark Bronze

Price: $842.11
Price: $842.11

MODEL: Evolve-EFH1-272
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

PRODUCT FAMILY DESCRIPTION
The Evolve LED High Output Flood Light is our high-lumen solution to efficiently illuminate building facade, flag poles, billboard signage and many more traditional flood applications.
Designed to replace 250W-400W HPS and 400W-1000W Metal Halide Flood Lights.

PRODUCT FAMILY SPECIFICATIONS
Construction
  • Housing: Aluminum die cast enclosure.
  • Integral heat sink for maximum heat transfer
  • Lens: Impact resistant tempered glass
  • Paint: Corrosion resistant polyester powder paint, minimum 2.0 mil thickness
  • Standard = Black, Dark Bronze, Gray, White
  • (RAL & custom colors available)
  • Optional = Coastal Finish
  • Weight: 35 lbs (15.9 kgs)
Optical system
  • Lumens: 23,400 - 59,000
  • Distribution: 3x3, 6x5, 6x6, 7x6, 7x7
  • Efficacy: 121 -164 LPW
  • CCT: 2700K, 3000K, 4000K, 5000K
  • CRI: ≥70
Electrical
  • Input Voltage: 120-277V, 277-480V
  • Input Frequency: 50/60 Hz
  • Power Factor: ≥ 90% at rated watts
  • Total Harmonic
  • Distortion:
  • ≤ 20% at rated watts
