Home > Halo Lighting > Fail Safe 4VRVT3-LD5-4-G-UNV-L835-CD1-WL-U 4' Tamper Resistant Vaportite LED, 4000 Lumens, General Distribution, 120-277V, 3500K, 1 Dimming Driver, Wet Location

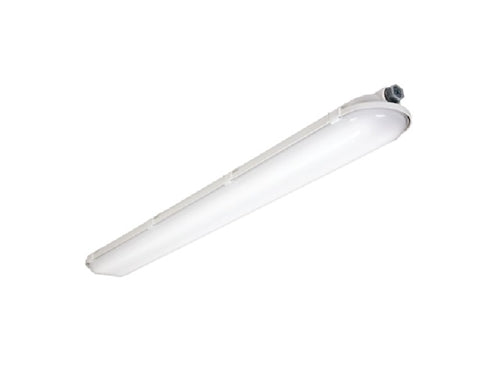

Fail Safe 4VRVT3-LD5-4-G-UNV-L835-CD1-WL-U 4' Tamper Resistant Vaportite LED, 4000 Lumens, General Distribution, 120-277V, 3500K, 1 Dimming Driver, Wet Location
Fail Safe 4VRVT3-LD5-4-G-UNV-L835-CD1-WL-U 4' Tamper Resistant Vaportite LED, 4000 Lumens, General Distribution, 120-277V, 3500K, 1 Dimming Driver, Wet Location
Regular price
Price:
$390.56
Regular price
Price:
Sale price
$390.56
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT FAMILY SPECIFICATIONS
Construction
Construction
- Rugged and durable construction
- Fiberglass housing is reinforced polyester and self-extinguishing (ASTM-D635-74) plastic
- Full metal fixture liner
- Watertight housing
- 1/2” conduit entry at each end of housing (standard) for continuous feed
- Polyurethane gasketing provides a continuous seamless seal for the diffuser lens
- Four sturdy cam latches clamp diffuser tightly for a positive seal between housing, gasketing and diffuser
- Stainless steel latches option
- Surface or chain mounting
- Torx (R) Tamperproof Screws to prevent unauthorized access
Electrical
- Long-Life LED system coupled with electrical driver for optimal performance
- LED’s available in 3500K, 4000K and 5000K with a CRI ≥ 80
- Projected life is 60,000 hours at 91% lumen output
- Electronic drivers are available for 120-277V applications
- 0-10V dimming control (standard)
- Operating temperature of -40°C to 55°C; Ideal for cold storage environments
Lens
- Thermoformed low profile, high impact 50% DR High acrylic lens
- Smooth frosted lens for general distribution
- Frosted prismatic lens for wide distribution
- Clear prismatic lens for parking garage distribution
Warranty
- Five-year limited warranty
Compliance
- UL/cUL listed for Wet location
- RoHS compliant
- LED modules comply with IESNA LM-79 and LM-80 standards
- NEMA 4X, IP65, IP66 and IP67 rated (see installation instructions for requirements)
- IP69 rated with wide or parking garage distributions
- NSF International certified for NSF/ANSI Standard 2 -- Food Equipment
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
