Firex 4518 AC Smoke Detector Alarm with Battery Back-up and False Alarm Control
Firex 4518 AC Smoke Detector Alarm with Battery Back-up and False Alarm Control
You should replace ALL your old Firex alarms with new units to maintain communication between all alarms.
If you need the 10 year sealed lithium battery, please click here.
description

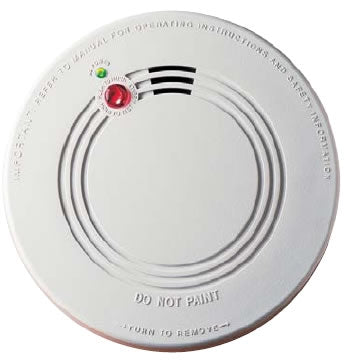

The Firex 4518 Smoke Alarm is an ionization 120V AC smoke alarm with battery back-up for single or multiple station use. It includes a Quick QuietTM False Alarm Control feature which allows the user to quiet an unwanted alarm for up to 15 minutes. The 4518 has an 85 decibel horn, ramp-up test horn, test switch and separate lighted power and alarm LED indicators; the green "power on" LED confirms constant AC power and the red LED displays alarm/battery status. The Latching LED feature clearly identifies the smoke alarm that initiated an alarm in an interconnected system with a flashing red LED. The LED will remain flashing until the test button is depressed on that unit. The dust cover eliminates nuisance call-backs by keeping construction dust and debris from causing false alarms.
This unit mounts to any single or 4" octagon junction box or square-to-round drywall ring and has 8" long pigtails with a Quick Connect harness for permanent connection. The 4518 is interconnectable with up to 11 other AC/DC smoke alarms and 6 Firex heat, carbon monoxide or smoke and CO combo alarms for a total of not more than 18 Firex devices. When interconnected with other Firex smoke alarms, the unit that initiates an alarm will display a rapidly flashing red LED while the other interconnected alarm LEDs remain extinguished. This Firex unit should be placed in single-family households or in each individual living unit of multiple-family buildings.
- NEW Alarm Locator — Red LED flashes until reset for quick, clear identification of the initiating alarm in an interconnected system (item 4518 only)
- Quick QuietTM False Alarm Control — Quiets unwanted alarms for up to 15 minutes
- NEW Visable Low Battery Indicator — Helps locate chirping unit (item 4518 only)
- 9 Volt Battery Back-up (battery included) — Provides added protection in the event of a power failure
- NEW Ramp-Up Test Horn — Allows you to test the unit without the ear-piercing horn (item 4518 only)
- Interconnects with other Firex smoke alarms and heat alarms — Compatible with other contractor preferred Firex products
- Two separate lighted LEDS — Green "power-on" LED confirms constant AC power and red LED displays alarm/battery status
- Factory sealed housing — Prevents tampering and provides outstanding durability
| Item | 4518 |
| Model | ADC |
| Weight | 8 ounces |
| Operating Temperature | 40° - 100°F |
| Interconnect Qty. | Up to 18 Firex devices maximum: 12 Smoke alarm items 4418 (C) (model AD), 4518 (C) (model ADC), 5000 and 4618 (model FADC), and 4480 (model PAD). Up to 6 heat, carbon monoxide or smoke and carbon monoxide combination alarms maximum; Firex heat alarm item 5700 (model ADH), Firex carbon monoxide alarm item 10000 (model COE) or Firex smoke and carbon monoxide combination alarm 12000 (model FADCM). |
| Electrical Rating | 120V AC, 60HZ, 50mA max, 9 Volt Battery Back-up |
| Alarm Point | 1.29±0.51%/ft. obscuration |
| Horn Output | 85 decibels at 10 feet |
| Listings | 4518 - U.L. 217 4518 C - U.L.C. S531 |
| Detection Type | Dual ionization chamber |
| Humidity Range | 10%-93% relative humidity |
Download PDF manual (English)Share your knowledge of this product. Be the first to write a review »
