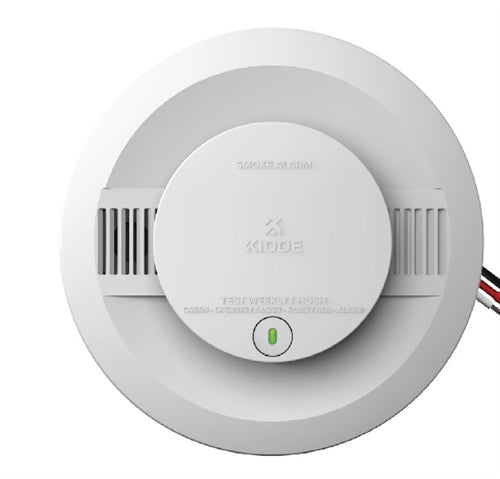

Firex SMAC9VFEX AC Hardwired Photoelectric Smoke Alarm with 9V Battery Back Up
Firex SMAC9VFEX AC Hardwired Photoelectric Smoke Alarm with 9V Battery Back Up
Regular price
Price:
$19.75
Regular price
Price:
Sale price
$19.75
Unit price
per
Ordering a Large Quantity?
Request a quote
description
PRODUCT DESCRIPTION
When you're on the job, there's no room for uncertainty. Built for pros, the FireX Smoke Alarm (model SMAC9VFEX) delivers dependable, code-compliant detection — backed by North America’s #1 home fire safety brand.*
When you're on the job, there's no room for uncertainty. Built for pros, the FireX Smoke Alarm (model SMAC9VFEX) delivers dependable, code-compliant detection — backed by North America’s #1 home fire safety brand.*
This advanced photoelectric sensor alarm meets UL 217 10th Edition standards. You'll also find key features both you and your customers will appreciate, like reduced nuisance alarms, self-testing capability, event memory and universal mounting for streamlined installs.
PRODUCT FEATURES AND BENEFITS
PRODUCT FEATURES AND BENEFITS
- Faster Detection1 -- Advanced smoke chamber design for quicker, more reliable alerts
- Reduced Nuisance Alarms -- Intelligent algorithms help distinguish real threats from false alarms
- Fire Event Locator Memory –-- LED indicator every 15 seconds after an alarm event
- Self-Testing Diagnostics -- Monitors key functions for consistent, lasting performance
- Heat & Humidity Protection -- Conformal coating protects against oxidation, corrosion and environmental conditions
- 5-Inch Universal Mounting Bracket -- Streamlines installation and replacement
- Preinstalled Dust Cover -- Rigid plastic cover shields alarm from construction dust and debris
- Durable, Fire-Resistant Housing -- Built-to-last with screw-secured PVC construction that resists yellowing and aging
| Alarm Indications | Smoke Alarm: Temporal-3, ≥85 dB @10 ft |
| Red LED in sync with alarm (initiating alarm(s) only) | |
| Amber LED = Fault / Error / EOL / Low Battery | |
| Green = Power | |
| Event Recall: Red LED every 15 sec (24 hrs.) | |
| Clean Me: 1 blink + 3 chirps (dust) | |
| Power & Battery | Primary: 120V AC, 60 Hz, 60 mA max |
| Backup: 1 × 9V battery (included) | |
| Battery Life: ~1 yr (replace when chirp occurs) | |
| UL 217 10th Endurance: ≥7 days standby + 4 min alarm on battery only | |
| Approved: Gold Peak 1604P/1604A, Eveready 1222, Energizer 522, Duracell MN1604, Panasonic 6AM6/6AM-6/6AM-6PI/6AM6X/6LR61(GA) | |
| Not lithium compatible | |
| Functional Features | Test/Hush Button (simulates smoke) |
| Hush™ (8 min) | |
| Alarm Auto Reset After Hushing | |
| Tamper-Resistant AC Quick Connector | |
| Compliance & Listings | ETL Listed; UL 217, 10th Edition |
| NFPA 72 (2025) | |
| NFPA 101 | |
| ICC/IBC aligned | |
| CSFM Listed | |
| Meets HUD/FHA standards | |
| Architectural / Engineering | Housing: Flame-retardant thermoplastic (UL 94) |
| 3 LED indicators | |
| ≥85 dB | |
| Meets UL 217 10th, NFPA 72 (2025), NFPA 101, FHA, HUD | |
| Technical | Model: SMAC9VFEX |
| Sensor: Photoelectric | |
| Temp: 40–100 °F | |
| Humidity: ≤95% RH | |

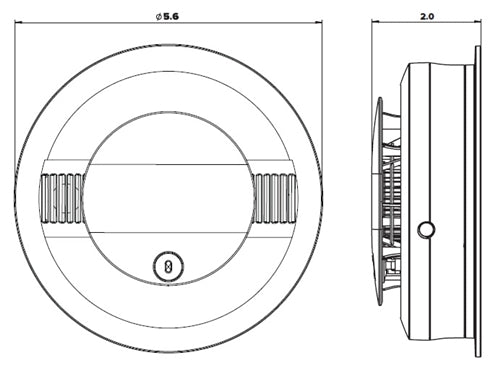

| Dimensions: 5.67" box / 5" out | |
| Weight: 0.86 lb. | |
| Wiring: Quick-connect harness | |
| Interconnect: Up to 24 Kidde devices | |
| Warranty | 10-Year Limited (excludes batteries) |
