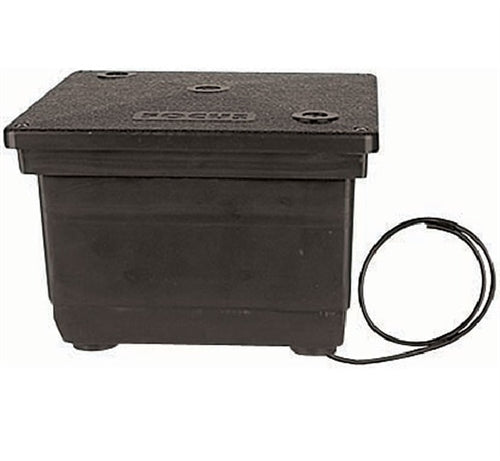

Focus Industries DBS1260M12NPS 60W 12.5V Direct Burial Magnetic Transformer, Center Top 1/2" NPS

Focus Industries DBS1260M12NPS 60W 12.5V Direct Burial Magnetic Transformer, Center Top 1/2" NPS

10% off on $500 order or more
Price: $198.38
Price: $198.38

MODEL: Focus-DBS1260M12NPS
Add To Wishlist
Request a Quote
Ordering a large quantity? Request a quote
View full details

description

PRODUCT FAMILY FEATURES
  • Heavy duty, high temperature, fiberglass reinforced composite construction.
  • 1/2" NPS & 3/4" NPS bottom hubs for line voltage input, feed through & low voltage output
  • 1/2" NPS hubs on cover for fixture and or photocell mounting (consult factory for details)
  • 120 volt primary, 12.5v secondary, 50/60hz standard
  • Multi Volt 12.5v / 13.5v / 14.5v options available (see Transformer Options below)
  • Isolation type magnetic transformer - no contact between 120v and 12v windings (compact electronic Halogen transformers available, see ordering information below)
  • Magnetic circuit breaker for secondary overload/short circuit protection
  • Long life, high temperature (130°C) transformer core
  • Single phase, open core and coil
  • Completely potted for longer life, more efficiency and reduced noise
  • 2 feet of 12/2 direct burial cable for low voltage connections (1 per circuit and/or voltage tap)
  • 1/2" NPS mounting hubs available on cover (specify at time of order if tapping required)
  • NEMA 6 rated enclosure for below grade direct burial applications
  • UL 1838 and UL 1598 certified
  • 3 year warranty on enclosure and mechanical/electrical components
