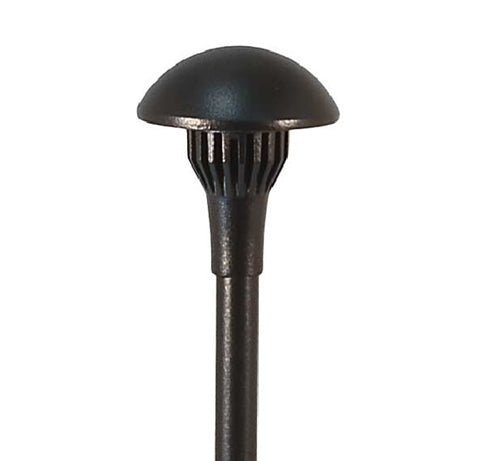

Focus Industries AL-06-LEDP-15S-BRT 12V 4W LED 300 lumens 5.5" Mushroom Hat Area Light, 15" stem, Bronze Texture Finish
Focus Industries AL-06-LEDP-15S-BRT 12V 4W LED 300 lumens 5.5" Mushroom Hat Area Light, 15" stem, Bronze Texture Finish
Regular price
Price:
$186.21
Regular price
Price:
Sale price
$186.21
Unit price
per
Ordering a large quantity?Request a quote
description
PRODUCT SPECIFICATIONS
CONSTRUCTION: Cast aluminum or cast brass mushroom hat; matching extruded aluminum or brass stanchion with fixed LED heat sink hub
STEM: 15" stem
LENS: High impact clear acrylic
LIGHT SOURCE: 4w 300 lumen integrated round LED flat panel, warm white 3000K; optional cool white 5200K 320 lumen available (modify part number to "LEDP52")
LIFETIME RATING: 50,000 hours
12V INTERNAL DRIVER: 5w 12vDC 350mA output, 12vAC input
SOCKET: None - LED is hard wired inside fixture
WIRING: Black 3 foot 18/2 zip cord from base of fixture (12v only)
For 25 foot 16/2 fixture lead wire add -25F to catalog number.
CONNECTION: FA-05 Quick Connector (not supplied) from fixture to main cable (12/2, 10/2 or 8/2 only) 12v only
MOUNTING: FA-03 black 9" ABS stake, tapped 1/2" NPS
FINISH: Aluminum-Black texture polyester powder coat. Optional finishes available.
Brass-Unfinished brass. Optional finishes available.
NOTE: 120v - 277v options available with remote LED driver. Must use FA-26 mounting post or FA-JBOX junction box to house remote driver.
CONSTRUCTION: Cast aluminum or cast brass mushroom hat; matching extruded aluminum or brass stanchion with fixed LED heat sink hub
STEM: 15" stem
LENS: High impact clear acrylic
LIGHT SOURCE: 4w 300 lumen integrated round LED flat panel, warm white 3000K; optional cool white 5200K 320 lumen available (modify part number to "LEDP52")
LIFETIME RATING: 50,000 hours
12V INTERNAL DRIVER: 5w 12vDC 350mA output, 12vAC input
SOCKET: None - LED is hard wired inside fixture
WIRING: Black 3 foot 18/2 zip cord from base of fixture (12v only)
For 25 foot 16/2 fixture lead wire add -25F to catalog number.
CONNECTION: FA-05 Quick Connector (not supplied) from fixture to main cable (12/2, 10/2 or 8/2 only) 12v only
MOUNTING: FA-03 black 9" ABS stake, tapped 1/2" NPS
FINISH: Aluminum-Black texture polyester powder coat. Optional finishes available.
Brass-Unfinished brass. Optional finishes available.
NOTE: 120v - 277v options available with remote LED driver. Must use FA-26 mounting post or FA-JBOX junction box to house remote driver.
