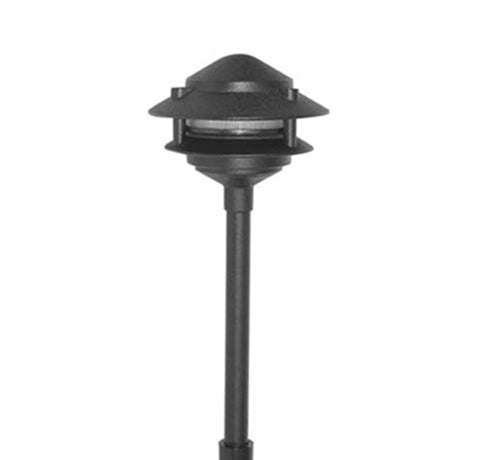

Focus Industries AL033TL12BRT 3W Omni Super Saver LED 3 Tier Aluminum 6" Pagoda Hat Area Light, Bronze Texture Finish
Focus Industries AL033TL12BRT 3W Omni Super Saver LED 3 Tier Aluminum 6" Pagoda Hat Area Light, Bronze Texture Finish
Regular price
Price:
$119.58
Regular price
Price:
Sale price
$119.58
Unit price
per
Ordering a large quantity?
Request a quote
description
PRODUCT SPECIFICATIONS
CONSTRUCTION: Cast aluminum Pagoda Hat with matching extruded aluminum stanchion.
Two, Three or Four tier models available.
CONSTRUCTION: Cast aluminum Pagoda Hat with matching extruded aluminum stanchion.
Two, Three or Four tier models available.
AL-03 LENS: 3.25" tall clear prismatic polycarbonate
AL-03-3T LENS: 5" tall clear tempered glass
AL-03-4T LENS: 7" tall clear tempered glass
LAMP SUPPLIED: 3w Omni3 Super Saver LED (L12)
CCT/LUMENS: 3000K / 300LM
SOCKET: Single contact bayonet, brass nickel plated lamp socket screw shell (Ba15s); double contact bayonet base (Ba15d) for 120v, both with 200°C silicone lead wires
WIRING: Black 3 foot 18/2 zip cord from base of fixture (12v only)
For 25 foot 16/2 fixture lead wire add -25F to catalog number.
120v Standard wiring
CONNECTION: FA-05 Quick Connector (not supplied) from fixture to main cable (12/2, 10/2 or 8/2 only) 12v only
MOUNTING: FA-03 black 9" ABS stake, tapped 1/2" NPS
FINISH: Black texture polyester powder coat. Optional finishes available.
AL-03-3T LENS: 5" tall clear tempered glass
AL-03-4T LENS: 7" tall clear tempered glass
LAMP SUPPLIED: 3w Omni3 Super Saver LED (L12)
CCT/LUMENS: 3000K / 300LM
SOCKET: Single contact bayonet, brass nickel plated lamp socket screw shell (Ba15s); double contact bayonet base (Ba15d) for 120v, both with 200°C silicone lead wires
WIRING: Black 3 foot 18/2 zip cord from base of fixture (12v only)
For 25 foot 16/2 fixture lead wire add -25F to catalog number.
120v Standard wiring
CONNECTION: FA-05 Quick Connector (not supplied) from fixture to main cable (12/2, 10/2 or 8/2 only) 12v only
MOUNTING: FA-03 black 9" ABS stake, tapped 1/2" NPS
FINISH: Black texture polyester powder coat. Optional finishes available.
downloads
Download PDF SpecificationShare your knowledge of this product. Be the first to write a review »
